Same model may have multiple batches, images only for reference.

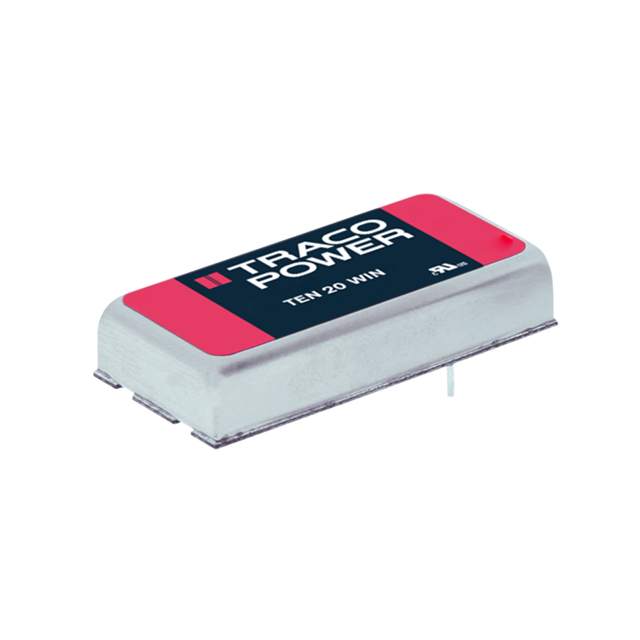

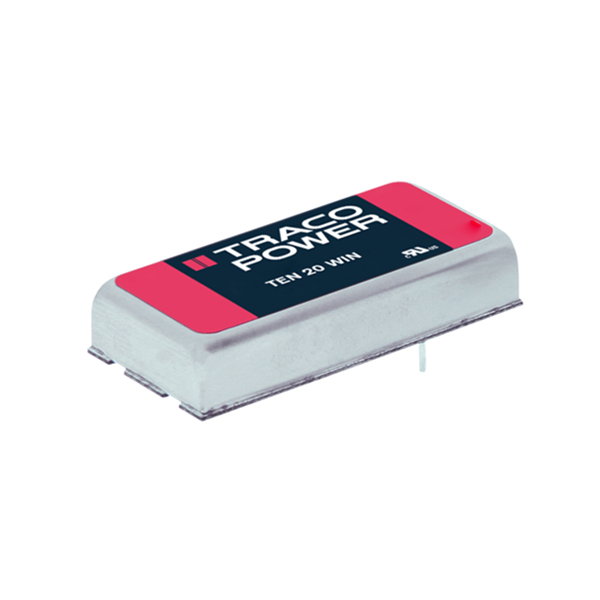

TEN 20-4823WIN Real Image
Same model may have multiple batches, images only for reference.

TEN 20-4823WIN

Part No TEN 20-4823WIN
Manufacturer Traco Power
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER +/-15V 20W / Isolated Module DC DC Converter 2 Output 15V -15V 665mA, 665mA 18V - 75V Input
Datasheet
TEN 20-4823WIN Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Manufacturer Traco Power
Packaging Tube
Type Isolated Module
Number of Outputs 2
Voltage - Input (Min) 18V
Voltage - Input (Max) 75V
Voltage - Output 1 15V
Voltage - Output 2 -15V
Current - Output (Max) 665mA, 665mA
Power (Watts) 20 W
Voltage - Isolation 1.5 kV
Applications ITE (Commercial)
Features Remote On/Off, OCP, OVP, SCP
Temperature Range - Operating -40°C ~ 85°C (With Derating)
Efficiency 88%
Mounting Through Hole
Case / Package 6-DIP Module
Size / Dimension 2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm)
Base Product Number TEN 20
RoHS Status ROHS3 Compliant
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Other Part Number 1951-2139
Standard Package 10
Win Source Part Number 1335654-TEN 20-4823WIN
Ultra Librarian 3D Model Ultra Librarian TEN 20-4823WIN CAD Model

Description

The Traco Power TEN 20-4823WIN is an isolated module DC-DC converter that has a power output of 20 watts.

  • Standard Package: 10
  • Application: Commercial use
  • Manufacturer: Traco Power
  • Win Source Part Number: 1335654
  • Voltage Isolation: 1.5 kV
  • Features: Remote on/off, OCP, OVP, and SCP
  • Efficiency: 88 percent
  • Operating Temperature: -40°C to 85°C (with derating)
