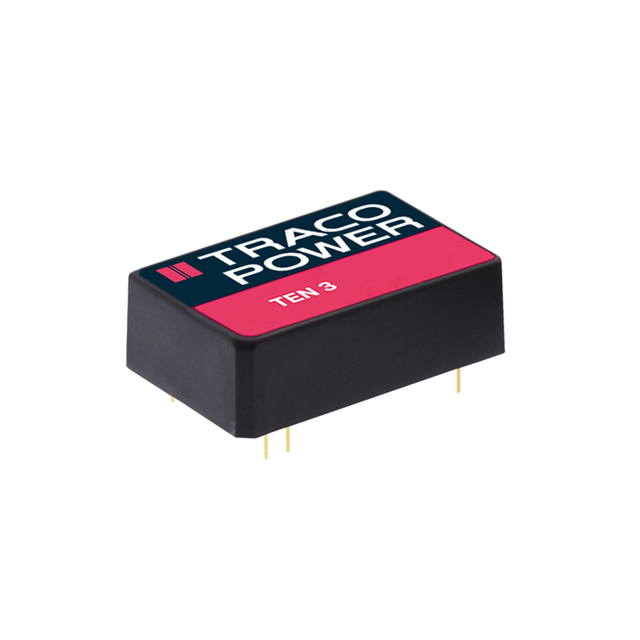

Same model may have multiple batches, images only for reference.

TEN 3-0521

Name: TEN 3-0521
Brand: Traco Power
SKU: 1335696
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	TEN 3-0521
Manufacturer	Traco Power
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER +/-5V 2.5W / Isolated Module DC DC Converter 2 Output 5V -5V 250mA, 250mA 4.5V - 9V Input
Datasheet	TEN 3-0521 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount>DC DC Converters
Manufacturer	Traco Power
Packaging	Tube
Product Status	Not For New Designs
Type	Isolated Module
Number of Outputs	2
Voltage - Input (Min)	4.5V
Voltage - Input (Max)	9V
Voltage - Output 1	5V
Voltage - Output 2	-5V
Current - Output (Max)	250mA, 250mA
Power (Watts)	2.5 W
Voltage - Isolation	1.5 kV
Applications	ITE (Commercial)
Features	SCP
Temperature Range - Operating	-40°C ~ 85°C (With Derating)
Efficiency	72%
Mounting	Through Hole
Case / Package	24-DIP Module, 8 Leads
Size / Dimension	1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm)
Approval Agency	CB, cCSAus
Base Product Number	TEN 3
RoHS Status	ROHS3 Compliant
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.40.9580
Other Part Number	1951-2152
Standard Package	10
Win Source Part Number	1335696-TEN 3-0521
Ultra Librarian 3D Model	Ultra Librarian TEN 3-0521 CAD Model

Alternative Products

Description

The Traco Power 1335696-TEN 3-0521 is a 2.5W isolated module DC-DC converter.

Outputs: two outputs
Maximum Current Output: 250mA each
Input Voltage: ranges from 4.5V to 9V
Output Voltage: 5V and output 2 is -5V
Voltage Isolation: 1.5kV
Temperature Range: -40°C to 85°C (with derating)
Package: 24-DIP module, 8 leads
Supplied: in a tube
Applications: commercial applications
Compliance: compliant with the RoHS3 directive
