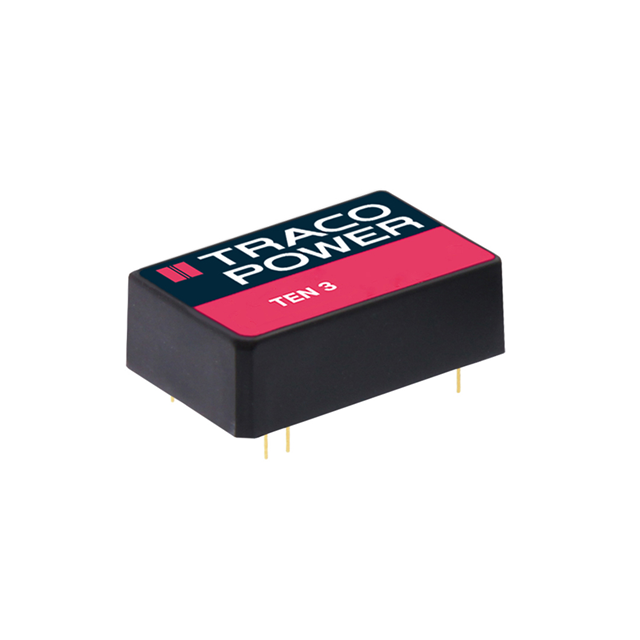

Same model may have multiple batches, images only for reference.

TEN 3-0523

Name: TEN 3-0523
Brand: Traco Power
SKU: 1335695
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	TEN 3-0523
Manufacturer	Traco Power
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER +/-15V 3W / Isolated Module DC DC Converter 2 Output 15V -15V 100mA, 100mA 4.5V - 9V Input
Datasheet	TEN 3-0523 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount>DC DC Converters
Manufacturer	Traco Power
Packaging	Tube
Product Status	Not For New Designs
Type	Isolated Module
Number of Outputs	2
Voltage - Input (Min)	4.5V
Voltage - Input (Max)	9V
Voltage - Output 1	15V
Voltage - Output 2	-15V
Current - Output (Max)	100mA, 100mA
Power (Watts)	3 W
Voltage - Isolation	1.5 kV
Applications	ITE (Commercial)
Features	SCP
Temperature Range - Operating	-40°C ~ 85°C (With Derating)
Efficiency	75%
Mounting	Through Hole
Case / Package	24-DIP Module, 8 Leads
Size / Dimension	1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm)
Approval Agency	CB, cCSAus
Base Product Number	TEN 3
RoHS Status	ROHS3 Compliant
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.40.9580
Other Part Number	1951-2153
Standard Package	10
Win Source Part Number	1335695-TEN 3-0523
Ultra Librarian 3D Model	Ultra Librarian TEN 3-0523 CAD Model

Alternative Products

Description

The TEN 3-0523 is a DC-DC converter from Traco Power.

Category: board mount power supplies categorized under Power Supplies - Board Mount
Status: not for new designs
ECCN: EAR99
Type: isolated module type converter with SCP features
Size: 1.25" L x 0.80" W x 0.40" H
Applications: ITE (Commercial) applications
Efficiency: 75%
Outputs: 2 outputs
Maximum Output Current: 100mA
Input Voltage Range: 4.5V to 9V
Output Voltage: 15V and -15V
