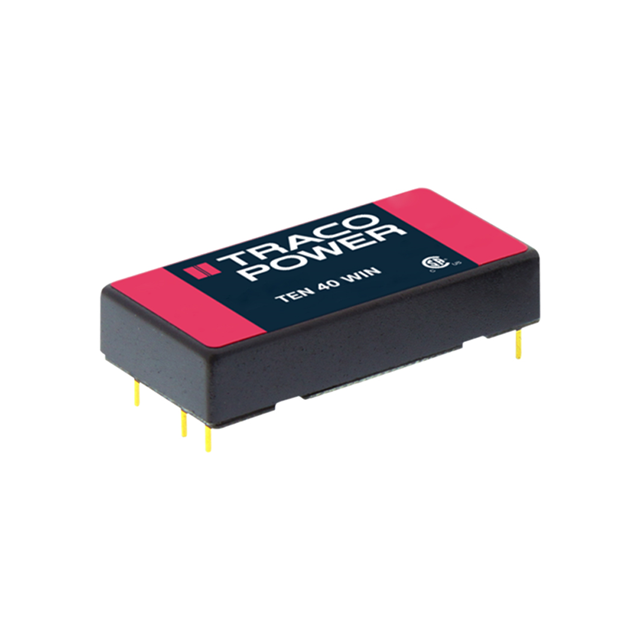

Same model may have multiple batches, images only for reference.

TEN 40-4822WIN

Name: TEN 40-4822WIN
Brand: Traco Power
SKU: 1335795
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	TEN 40-4822WIN
Manufacturer	Traco Power
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER +/-12V 40W / Isolated Module DC DC Converter 2 Output 12V -12V 1.67A, 1.67A 18V - 75V Input
Datasheet	TEN 40-4822WIN Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount>DC DC Converters
Manufacturer	Traco Power
Packaging	Tube
Type	Isolated Module
Number of Outputs	2
Voltage - Input (Min)	18V
Voltage - Input (Max)	75V
Voltage - Output 1	12V
Voltage - Output 2	-12V
Current - Output (Max)	1.67A, 1.67A
Power (Watts)	40 W
Voltage - Isolation	1.5 kV
Applications	ITE (Commercial)
Features	Remote On/Off, OVP, SCP
Temperature Range - Operating	-40°C ~ 75°C (With Derating)
Efficiency	88%
Mounting	Through Hole
Case / Package	6-DIP Module
Size / Dimension	2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm)
Base Product Number	TEN 40
RoHS Status	ROHS3 Compliant
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.40.9580
Other Part Number	TEN40-4822WIN,TEN 40-4822WIN-ND
Standard Package	10
Win Source Part Number	1335795-TEN 40-4822WIN
Ultra Librarian 3D Model	Ultra Librarian TEN 40-4822WIN CAD Model

Alternative Products

Description

The TEN 40-4822WIN is a 40W isolated module DC DC converter used in ITE (Commercial) applications.

Manufacturer: Traco Power
Standard Package: 10
Size/Dimension: 2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm)
Voltage - Isolation: 1.5 kV
Outputs: Two
Maximum Current Output: 1.67A and 1.67A
Voltage - Input (Min): 18V
Voltage - Input (Max): 75V
Voltage - Output 1: 12V
Voltage - Output 2: -12V
Efficiency: 88%
Maximum Operating Temperature: -40°C to 75°C (With Derating)
