Same model may have multiple batches, images only for reference.

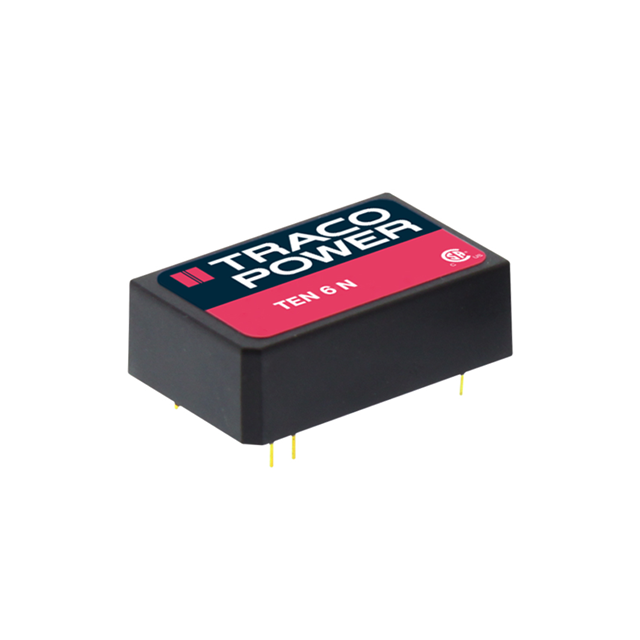

TEN 6-1215N Real Image
Same model may have multiple batches, images only for reference.

TEN 6-1215N

Part No TEN 6-1215N
Manufacturer Traco Power
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 24V 6W / Isolated Module DC DC Converter 1 Output 24V 250mA 9V - 18V Input
Datasheet
TEN 6-1215N Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Manufacturer Traco Power
Packaging Tube
Type Isolated Module
Number of Outputs 1
Voltage - Input (Min) 9V
Voltage - Input (Max) 18V
Voltage - Output 1 24V
Current - Output (Max) 250mA
Power (Watts) 6 W
Voltage - Isolation 1.5 kV
Applications ITE (Commercial)
Features OCP, SCP
Temperature Range - Operating -40°C ~ 85°C (With Derating)
Efficiency 84%
Mounting Through Hole
Case / Package 24-DIP Module, 7 Leads
Size / Dimension 1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm)
Base Product Number TEN 6
RoHS Status ROHS3 Compliant
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Other Part Number TEN 6-1215N-ND,1951-3029,TEN6-1215N,TEN6-1215N-ND
Standard Package 10
Win Source Part Number 1335831-TEN 6-1215N
Ultra Librarian 3D Model Ultra Librarian TEN 6-1215N CAD Model

Description

The Traco Power TEN 6-1215N is an isolated module DC-DC converter with OCP and SCP features.

  • Application: ITE (Commercial)
  • Power Output: 6W
  • Voltage Isolation: 1.5 kV
  • Output: Single
  • Maximum Current: 250mA
  • Voltage Output: 24V
  • Efficiency: 84%
  • Operating Temperature Range: -40°C to 85°C (With Derating)
  • Package: 24-DIP module, 7 Leads
  • Compliance: ROHS3
