Same model may have multiple batches, images only for reference.

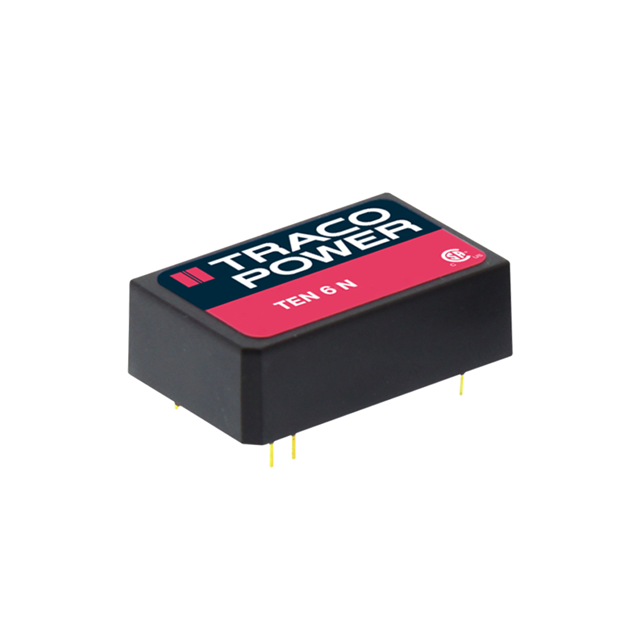

TEN 6-1221N Real Image
Same model may have multiple batches, images only for reference.

TEN 6-1221N

Part No TEN 6-1221N
Manufacturer Traco Power
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER +/-5V 5W / Isolated Module DC DC Converter 2 Output 5V -5V 500mA, 500mA 9V - 18V Input
Datasheet
TEN 6-1221N Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Manufacturer Traco Power
Packaging Tube
Type Isolated Module
Number of Outputs 2
Voltage - Input (Min) 9V
Voltage - Input (Max) 18V
Voltage - Output 1 5V
Voltage - Output 2 -5V
Current - Output (Max) 500mA, 500mA
Power (Watts) 5 W
Voltage - Isolation 1.5 kV
Applications ITE (Commercial)
Features OCP, SCP
Temperature Range - Operating -40°C ~ 85°C (With Derating)
Efficiency 78%
Mounting Through Hole
Case / Package 24-DIP Module, 8 Leads
Size / Dimension 1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm)
Base Product Number TEN 6
RoHS Status ROHS3 Compliant
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Other Part Number TEN6-1221N,TEN 6-1221N-ND
Standard Package 10
Win Source Part Number 1335808-TEN 6-1221N
Ultra Librarian 3D Model Ultra Librarian TEN 6-1221N CAD Model

Description

This electronic component is a DC-DC converter manufactured by Traco Power.

  • Win Source Part Number: 1335808-TEN 6-1221N
  • Package: Tube
  • Type: Isolated Module
  • Features: OCP and SCP
  • Size: 1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm)
  • Applications: ITE (Commercial)
  • Standard Package: 10
  • Mounting Style: Through-Hole
  • Power: 5W
  • Voltage Isolation: 1.5kV
  • Number of Outputs: 2
  • Maximum Output Current: 500mA
  • Voltage Input: 9V to 18V
  • Voltage Output 1: 5V
  • Voltage Output 2: -5V
  • Efficiency: 78%
  • Temperature Range: -40°C to 85°C (With Derating)
  • Case/Package: 24-DIP Module with 8 leads
