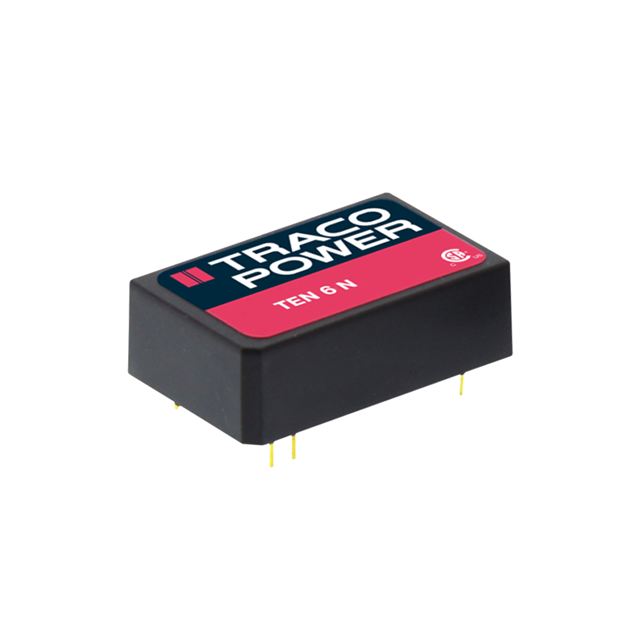

Same model may have multiple batches, images only for reference.

TEN 6-2422N

Name: TEN 6-2422N
Brand: Traco Power
SKU: 1335819
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	TEN 6-2422N
Manufacturer	Traco Power
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER +/-12V 6W / Isolated Module DC DC Converter 2 Output 12V -12V 250mA, 250mA 18V - 36V Input
Datasheet	TEN 6-2422N Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount>DC DC Converters
Manufacturer	Traco Power
Packaging	Tube
Type	Isolated Module
Number of Outputs	2
Voltage - Input (Min)	18V
Voltage - Input (Max)	36V
Voltage - Output 1	12V
Voltage - Output 2	-12V
Current - Output (Max)	250mA, 250mA
Power (Watts)	6 W
Voltage - Isolation	1.5 kV
Applications	ITE (Commercial)
Features	OCP, SCP
Temperature Range - Operating	-40°C ~ 85°C (With Derating)
Efficiency	84%
Mounting	Through Hole
Case / Package	24-DIP Module, 7 Leads
Size / Dimension	1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm)
Base Product Number	TEN 6
RoHS Status	ROHS3 Compliant
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.40.9580
Other Part Number	1951-2215
Standard Package	10
Win Source Part Number	1335819-TEN 6-2422N
Ultra Librarian 3D Model	Ultra Librarian TEN 6-2422N CAD Model

Alternative Products

Description

The Traco Power TEN 6-2422N is a DC-DC converter module.

Size: 1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm)
Power Output: 6 watts
Outputs: Two isolated outputs
Voltage: 12V and -12V
Maximum Output Current: 250mA for each output
Voltage Isolation: 1.5 kV
Efficiency: 84%
Applications: ITE (Commercial)
Operating Temperature: -40°C to 85°C (with derating)
Package: 24-DIP module with 7 leads
Mounting: Through hole
Features: OCP and SCP
Standard Package: 10
