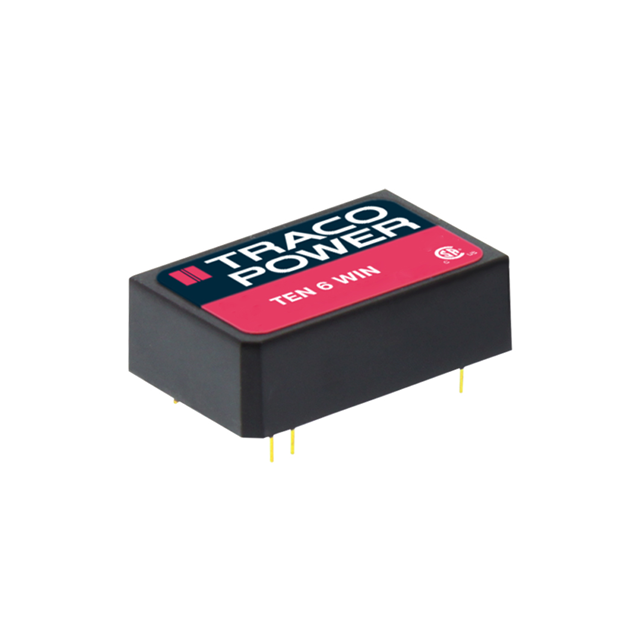

Same model may have multiple batches, images only for reference.

TEN 6-4822WIN

Name: TEN 6-4822WIN
Brand: Traco Power
SKU: 1335835
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	TEN 6-4822WIN
Manufacturer	Traco Power
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER +/-12V 6W / Isolated Module DC DC Converter 2 Output 12V -12V 250mA, 250mA 18V - 75V Input
Datasheet	TEN 6-4822WIN Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount>DC DC Converters
Manufacturer	Traco Power
Packaging	Tube
Type	Isolated Module
Number of Outputs	2
Voltage - Input (Min)	18V
Voltage - Input (Max)	75V
Voltage - Output 1	12V
Voltage - Output 2	-12V
Current - Output (Max)	250mA, 250mA
Power (Watts)	6 W
Voltage - Isolation	1.5 kV
Applications	ITE (Commercial)
Features	OCP, SCP
Temperature Range - Operating	-40°C ~ 85°C (With Derating)
Efficiency	84%
Mounting	Through Hole
Case / Package	24-DIP Module, 8 Leads
Size / Dimension	1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm)
Base Product Number	TEN 6
RoHS Status	ROHS3 Compliant
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.40.9580
Other Part Number	1951-2216
Standard Package	10
Win Source Part Number	1335835-TEN 6-4822WIN
Ultra Librarian 3D Model	Ultra Librarian TEN 6-4822WIN CAD Model

Alternative Products

Description

The TEN 6-4822WIN is an isolated module DC-DC converter from Traco Power.

Package: 24-DIP module, 8 leads
Mounting Style: Through-hole
Power Output: 6W
Efficiency: 84%
Outputs: Two
Maximum Current Output: 250mA each
Voltage Input Range: 18V to 75V
Voltage Output Ranges: 12V and -12V
ECCN: EAR99 compliant
Standard Package: 10
Protection: Over-current and short-circuit protection
Applications: Commercial
