Same model may have multiple batches, images only for reference.

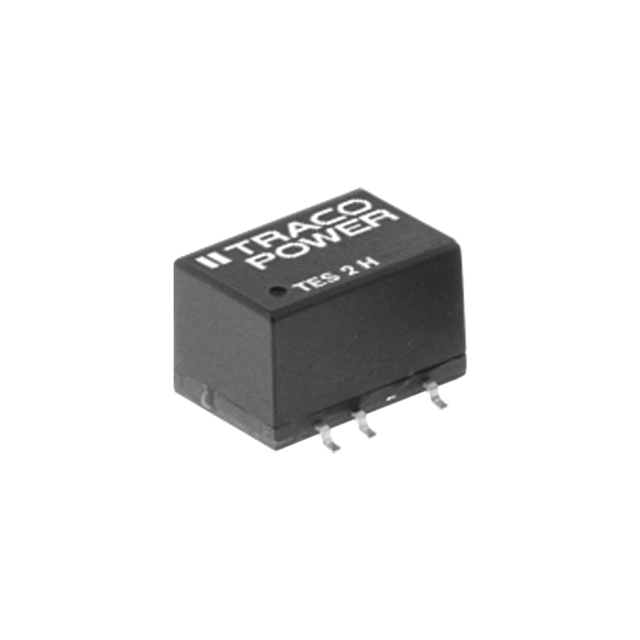

TES 2-2412H Real Image
Same model may have multiple batches, images only for reference.

TES 2-2412H

Part No TES 2-2412H
Manufacturer Traco Power
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 12V 2W / Isolated Module DC DC Converter 1 Output 12V 165mA 21.6V - 26.4V Input
Datasheet
TES 2-2412H Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Manufacturer Traco Power
Packaging Tube
Type Isolated Module
Number of Outputs 1
Voltage - Input (Min) 21.6V
Voltage - Input (Max) 26.4V
Voltage - Output 1 12V
Current - Output (Max) 165mA
Power (Watts) 2 W
Voltage - Isolation 1.5 kV
Applications ITE (Commercial)
Features SCP
Temperature Range - Operating -40°C ~ 85°C (With Derating)
Efficiency 79%
Mounting Surface Mount
Case / Package 8-SMD Module, 5 Leads
Size / Dimension 0.54" L x 0.37" W x 0.35" H (13.7mm x 9.3mm x 8.9mm)
Base Product Number TES 2
RoHS Status ROHS3 Compliant
MSL Level 2 (1 Year)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Other Part Number 1951-1902
Standard Package 10
Win Source Part Number 1335881-TES 2-2412H
Ultra Librarian 3D Model Ultra Librarian TES 2-2412H CAD Model

Description

The TES 2-2412H is a 2W isolated module DC-DC converter from Traco Power with SCP feature.

  • Size: 0.54" L x 0.37" W x 0.35" H (13.7mm x 9.3mm x 8.9mm)
  • Ideal for: ITE (Commercial) applications
  • Voltage Isolation: 1.5 kV
  • Maximum Output Current: 165mA
  • Input Voltage Range: 21.6V to 26.4V
  • Output Voltage: 12V
  • Efficiency: 79%
  • Operating Temperature: -40°C to 85°C (With Derating)
  • RoHS3 Compliant: Yes
  • Package: 8-SMD module, 5 leads
