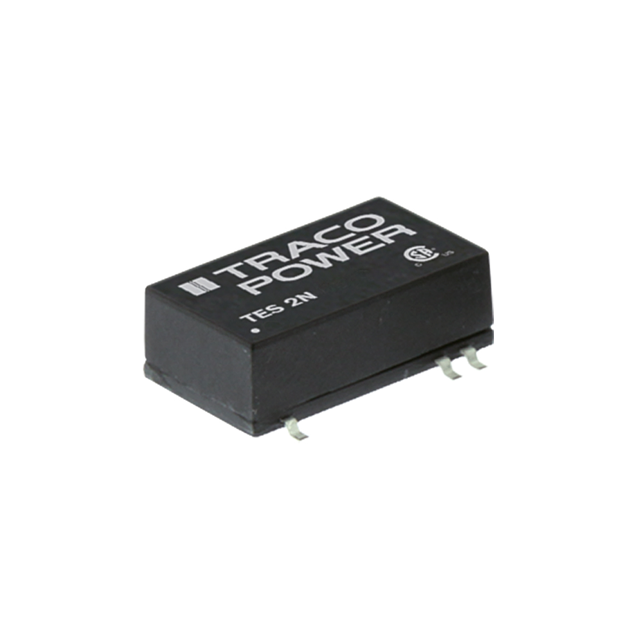

TES 2N-4810 Real Image
Same model may have multiple batches, images only for reference.

TES 2N-4810

Part No TES 2N-4810
Manufacturer Traco Power
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 3.3V 1.7W / Isolated Module DC DC Converter 1 Output 3.3V 500mA 36V - 75V Input
Datasheet
TES 2N-4810 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Manufacturer Traco Power
Packaging Tube
Product Status Not For New Designs
Type Isolated Module
Number of Outputs 1
Voltage - Input (Min) 36V
Voltage - Input (Max) 75V
Voltage - Output 1 3.3V
Current - Output (Max) 500mA
Power (Watts) 1.7 W
Voltage - Isolation 1.5 kV
Applications ITE (Commercial)
Features SCP
Temperature Range - Operating -40°C ~ 85°C (With Derating)
Efficiency 71%
Mounting Surface Mount
Case / Package 16-SMD Module, 6 Leads
Size / Dimension 0.94" L x 0.54" W x 0.36" H (24.0mm x 13.7mm x 9.3mm)
Base Product Number TES 2
RoHS Status ROHS3 Compliant
MSL Level 2 (1 Year)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Other Part Number 1951-2479
Standard Package 10
Win Source Part Number 1335878-TES 2N-4810
Ultra Librarian 3D Model Ultra Librarian TES 2N-4810 CAD Model

Description

The TES 2N-4810 is a DC-DC converter module designed for use in various applications that require a high level of power conversion efficiency from Traco Power.

  • Maximum Output Power: 1.7W
  • Maximum Output Current: 500mA
  • Operating Temperature Range: -40°C to +85°C
  • Built-in: Overcurrent protection circuit
