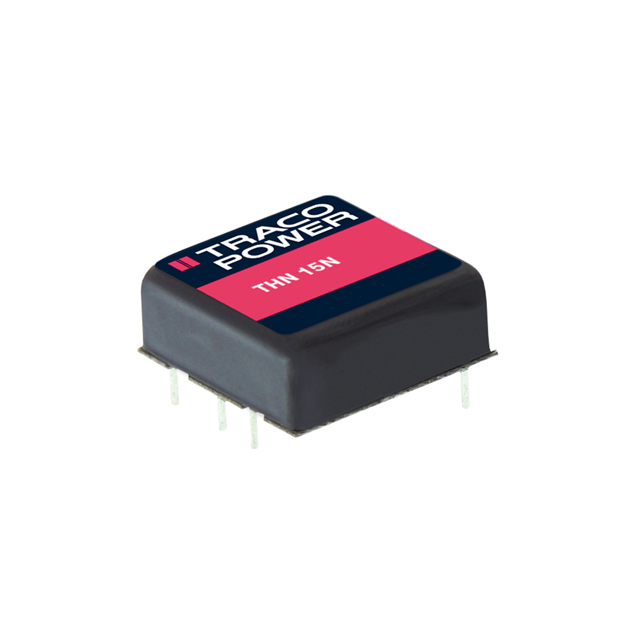

Same model may have multiple batches, images only for reference.

THN 15-1225N

Name: THN 15-1225N
Brand: Traco Power
SKU: 1335963
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	THN 15-1225N
Manufacturer	Traco Power
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER +/-24V 15W / Isolated Module DC DC Converter 2 Output 24V -24V 315mA, 315mA 9V - 18V Input
Datasheet	THN 15-1225N Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount>DC DC Converters
Manufacturer	Traco Power
Packaging	Tube
Type	Isolated Module
Number of Outputs	2
Voltage - Input (Min)	9V
Voltage - Input (Max)	18V
Voltage - Output 1	24V
Voltage - Output 2	-24V
Current - Output (Max)	315mA, 315mA
Power (Watts)	15 W
Voltage - Isolation	1.6 kV
Applications	ITE (Commercial)
Features	Remote On/Off, OCP, OVP, SCP
Temperature Range - Operating	-40°C ~ 105°C (With Derating)
Efficiency	90%
Mounting	Through Hole
Case / Package	6-DIP Module
Size / Dimension	1.00" L x 1.00" W x 0.39" H (25.4mm x 25.4mm x 9.9mm)
Base Product Number	THN 15
RoHS Status	ROHS3 Compliant
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.40.9580
Other Part Number	THN15-1225NINACTIVE,THN15-1225N-ND,1951-3278,THN15-1225N
Standard Package	10
Win Source Part Number	1335963-THN 15-1225N
Ultra Librarian 3D Model	Ultra Librarian THN 15-1225N CAD Model

Alternative Products

Description

The THN 15-1225N is an isolated module DC-DC converter from Traco Power.

Category: Power Supplies - Board Mount>DC DC Converters
Power Output: 15W
Outputs: Two
Maximum Output Current: 315mA each
Input Voltage Range: 9V to 18V
Features: Remote on/off, OCP, OVP, and SCP
Efficiency: 90%
Case/Package: 6-DIP module
Compliance: ROHS3 compliant
Estimated Production Lead Time: 51 weeks
