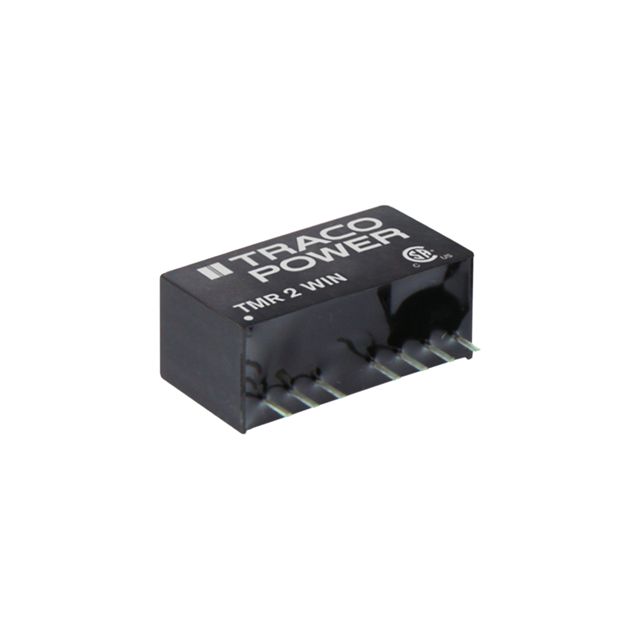

Same model may have multiple batches, images only for reference.

TMR 2-4823WIN

Name: TMR 2-4823WIN
Brand: Traco Power
SKU: 1336161
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	TMR 2-4823WIN
Manufacturer	Traco Power
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER +/-15V 2W / Isolated Module DC DC Converter 2 Output 15V -15V 67mA, 67mA 18V - 75V Input
Datasheet	TMR 2-4823WIN Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount>DC DC Converters
Manufacturer	Traco Power
Packaging	Tube
Type	Isolated Module
Number of Outputs	2
Voltage - Input (Min)	18V
Voltage - Input (Max)	75V
Voltage - Output 1	15V
Voltage - Output 2	-15V
Current - Output (Max)	67mA, 67mA
Power (Watts)	2 W
Voltage - Isolation	1.5 kV
Applications	ITE (Commercial)
Features	Remote On/Off, OCP, SCP
Temperature Range - Operating	-40°C ~ 90°C (With Derating)
Efficiency	82%
Mounting	Through Hole
Case / Package	8-SIP Module, 7 Leads
Size / Dimension	0.86" L x 0.37" W x 0.44" H (21.8mm x 9.3mm x 11.2mm)
Base Product Number	TMR 2
RoHS Status	ROHS3 Compliant
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.40.9580
Other Part Number	TMR 2-4823WIN-ND,TMR2-4823WIN
Standard Package	10
Win Source Part Number	1336161-TMR 2-4823WIN
Ultra Librarian 3D Model	Ultra Librarian TMR 2-4823WIN CAD Model

Alternative Products

Description

The Traco Power TMR 2-4823WIN is a DC DC converter with an isolated module.

Packaging: Tube
Application: ITE (Commercial)
Size/Dimension: 0.86" L x 0.37" W x 0.44" H (21.8mm x 9.3mm x 11.2mm)
Features: Remote on/off, OCP, and SCP
Power: 2W
Voltage-Isolation: 1.5 kV
Outputs: Two
Maximum Output Current 1: 67mA
Maximum Output Current 2: 67mA
Input Voltage Range: 18V to 75V
Output Voltage 1: 15V
Output Voltage 2: -15V
Operating Temperature: -40°C to 90°C (With Derating)
Package: 8-SIP module, 7 leads package
ECCN: EAR99
