Same model may have multiple batches, images only for reference.

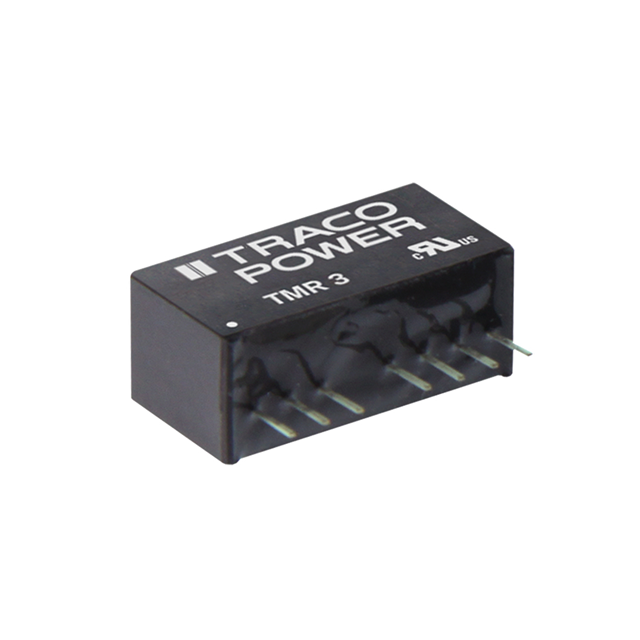

TMR 3-2421 Real Image
Same model may have multiple batches, images only for reference.

TMR 3-2421

Part No TMR 3-2421
Manufacturer Traco Power
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER +/-5V 3W / Isolated Module DC DC Converter 2 Output 5V -5V 300mA, 300mA 18V - 36V Input
Datasheet
TMR 3-2421 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Manufacturer Traco Power
Packaging Tube
Type Isolated Module
Number of Outputs 2
Voltage - Input (Min) 18V
Voltage - Input (Max) 36V
Voltage - Output 1 5V
Voltage - Output 2 -5V
Current - Output (Max) 300mA, 300mA
Power (Watts) 3 W
Voltage - Isolation 1.6 kV
Applications ITE (Commercial)
Features Remote On/Off, SCP
Temperature Range - Operating -40°C ~ 85°C (With Derating)
Efficiency 80%
Mounting Through Hole
Case / Package 8-SIP Module, 7 Leads
Size / Dimension 0.86" L x 0.36" W x 0.44" H (21.8mm x 9.2mm x 11.1mm)
Base Product Number TMR 3
RoHS Status ROHS3 Compliant
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Other Part Number 1951-2374
Standard Package 10
Win Source Part Number 1336205-TMR 3-2421
Ultra Librarian 3D Model Ultra Librarian TMR 3-2421 CAD Model

Description

The Traco Power TMR 3-2421 is an isolated module DC-DC converter that has a power rating of 3W.

  • Outputs: two outputs
  • Current - Output (Max): 300mA each
  • Voltage - Input: between 18V to 36V
  • Voltage - Output: 5V (output 1), -5V (output 2)
  • Voltage Isolation: 1.6kV
  • Efficiency: 80%
  • Features: remote on/off feature and SCP (short-circuit protection)
  • Size: 0.86" L x 0.36" W x 0.44" H (21.8mm x 9.2mm x 11.1mm)
  • Applications: ITE (commercial) applications
