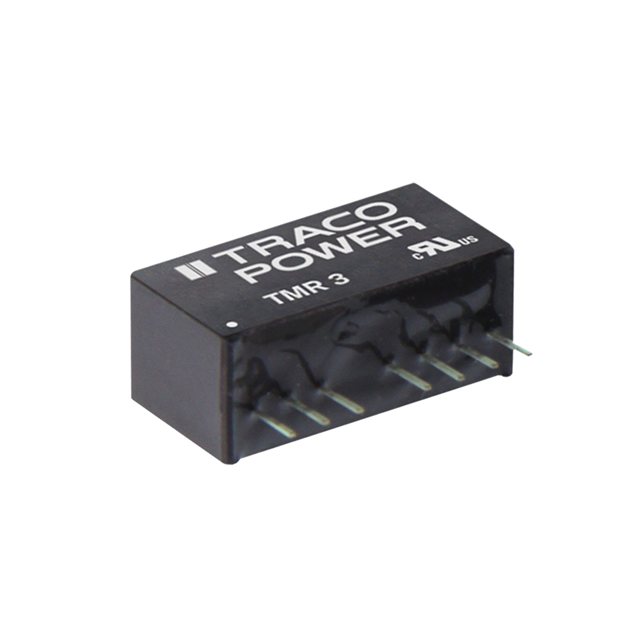

Same model may have multiple batches, images only for reference.

TMR 3-4823

Name: TMR 3-4823
Brand: Traco Power
SKU: 1336245
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	TMR 3-4823
Manufacturer	Traco Power
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER +/-15V 3W / Isolated Module DC DC Converter 2 Output 15V -15V 100mA, 100mA 36V - 75V Input
Datasheet	TMR 3-4823 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount>DC DC Converters
Manufacturer	Traco Power
Packaging	Tube
Type	Isolated Module
Number of Outputs	2
Voltage - Input (Min)	36V
Voltage - Input (Max)	75V
Voltage - Output 1	15V
Voltage - Output 2	-15V
Current - Output (Max)	100mA, 100mA
Power (Watts)	3 W
Voltage - Isolation	1.6 kV
Applications	ITE (Commercial)
Features	Remote On/Off, SCP
Temperature Range - Operating	-40°C ~ 85°C (With Derating)
Efficiency	83%
Mounting	Through Hole
Case / Package	8-SIP Module, 7 Leads
Size / Dimension	0.86" L x 0.36" W x 0.44" H (21.8mm x 9.2mm x 11.1mm)
Base Product Number	TMR 3
RoHS Status	ROHS3 Compliant
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.40.9580
Other Part Number	1951-2387
Standard Package	10
Win Source Part Number	1336245-TMR 3-4823
Ultra Librarian 3D Model	Ultra Librarian TMR 3-4823 CAD Model

Alternative Products

Description

The Traco Power TMR 3-4823 is a DC-DC converter module with an isolated design.

Size: 0.86" L x 0.36" W x 0.44" H (21.8mm x 9.2mm x 11.1mm)
Power Rating: 3 W
Outputs: Two
Maximum Output Current: 100mA each
Input Voltage Range: 36V to 75V
Features: Remote on/off and SCP
Voltage Isolation: 1.6 kV
Operating Temperature: -40°C to 85°C (with derating)
Ideal for: Commercial applications
