Same model may have multiple batches, images only for reference.

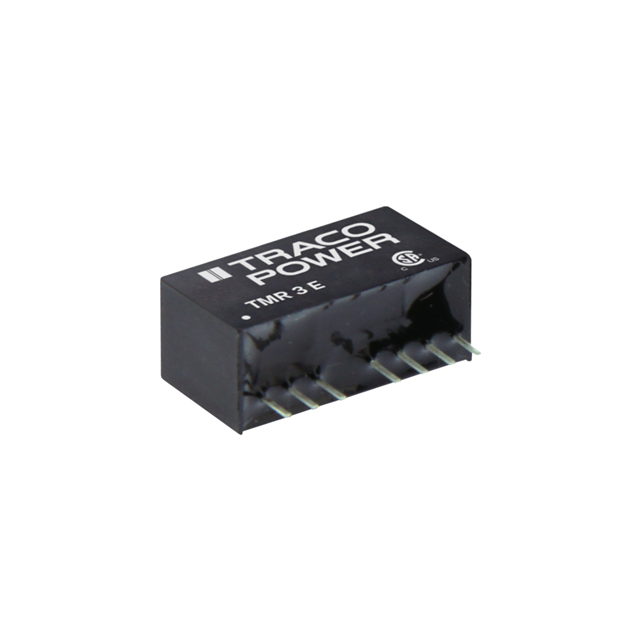

TMR 3-4823E Real Image
Same model may have multiple batches, images only for reference.

TMR 3-4823E

Part No TMR 3-4823E
Manufacturer Traco Power
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER +/-15V 3W / Isolated Module DC DC Converter 2 Output 15V -15V 100mA, 100mA 36V - 75V Input
Datasheet
TMR 3-4823E Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Manufacturer Traco Power
Packaging Tube
Type Isolated Module
Number of Outputs 2
Voltage - Input (Min) 36V
Voltage - Input (Max) 75V
Voltage - Output 1 15V
Voltage - Output 2 -15V
Current - Output (Max) 100mA, 100mA
Power (Watts) 3 W
Voltage - Isolation 1.5 kV
Applications ITE (Commercial)
Features Remote On/Off, SCP
Temperature Range - Operating -40°C ~ 85°C (With Derating)
Efficiency 83%
Mounting Through Hole
Case / Package 8-SIP Module, 7 Leads
Size / Dimension 0.86" L x 0.37" W x 0.44" H (21.8mm x 9.3mm x 11.2mm)
Base Product Number TMR 3
RoHS Status ROHS3 Compliant
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Other Part Number TMR3-4823E,TMR 3-4823E-ND
Standard Package 10
Win Source Part Number 1336260-TMR 3-4823E
Ultra Librarian 3D Model Ultra Librarian TMR 3-4823E CAD Model

Description

The Traco Power TMR 3-4823E isolated module DC-DC converter is a board mount device that is used to convert direct current (DC) to another level of DC voltage.

  • Power Rating: 3W
  • Maximum Output Current: 100mA for both outputs
  • Voltage Isolation: 1.5kV
  • Features: Remote on/off and SCP
  • Input Voltage: 36V to 75V
  • Output Voltage: 15V and -15V respectively
  • Efficiency: 83%
  • Operating Temperature: -40°C to 85°C (with derating)
  • Mounting: Through hole
  • Size: 0.86" L x 0.37" W x 0.44" H
  • Category: Power supplies - board mount
  • Package: 10
