Same model may have multiple batches, images only for reference.

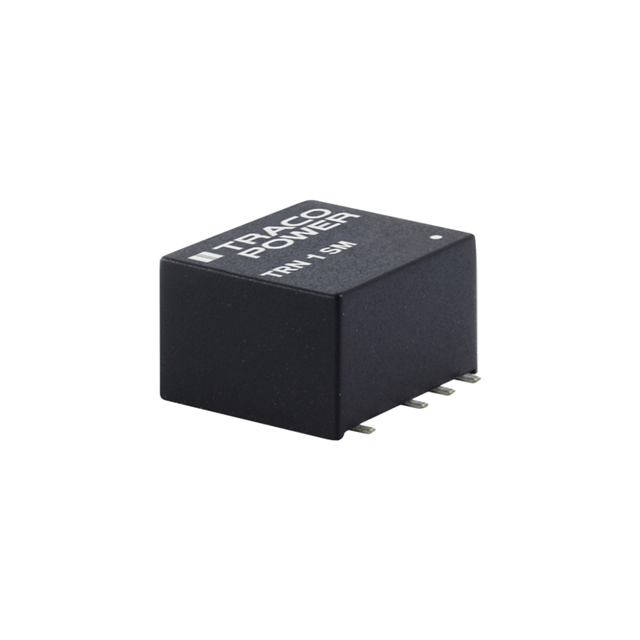

TRN 1-0521SM Real Image
Same model may have multiple batches, images only for reference.

TRN 1-0521SM

Part No TRN 1-0521SM
Manufacturer Traco Power
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER +/-5V 1W / Isolated Module DC DC Converter 2 Output 5V -5V 100mA, 100mA 4.5V - 13.2V Input
Datasheet
TRN 1-0521SM Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Manufacturer Traco Power
Packaging Tube
Type Isolated Module
Number of Outputs 2
Voltage - Input (Min) 4.5V
Voltage - Input (Max) 13.2V
Voltage - Output 1 5V
Voltage - Output 2 -5V
Current - Output (Max) 100mA, 100mA
Power (Watts) 1 W
Voltage - Isolation 1.6 kV
Applications ITE (Commercial)
Features SCP
Temperature Range - Operating -40°C ~ 90°C
Efficiency 79%
Mounting Surface Mount
Case / Package 7-SMD Module
Size / Dimension 0.47" L x 0.44" W x 0.31" H (11.9mm x 11.3mm x 8.0mm)
Base Product Number TRN 1
RoHS Status ROHS3 Compliant
MSL Level 2A (4 Weeks)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Other Part Number TRN1-0521SM,TRN 1-0521SM-ND
Standard Package 10
Win Source Part Number 1336328-TRN 1-0521SM
Ultra Librarian 3D Model Ultra Librarian TRN 1-0521SM CAD Model

Description

The Traco Power 1336328-TRN 1-0521SM is a 1W isolated module DC-DC converter that is designed for use in ITE (Commercial) applications.

  • Module Type: Isolated
  • Power: 1W
  • Application: ITE (Commercial)
  • Voltage Isolation: 1.6 kV
  • Maximum Output Current: 100mA per output
  • Voltage Input Range: 4.5V to 13.2V
  • Voltage Output: 5V and -5V
  • Efficiency: 79%
  • Case/Package: 7-SMD module
  • Temperature Range: -40°C to 90°C
  • Feature: SCP
  • RoHS: RoHS3 compliant
