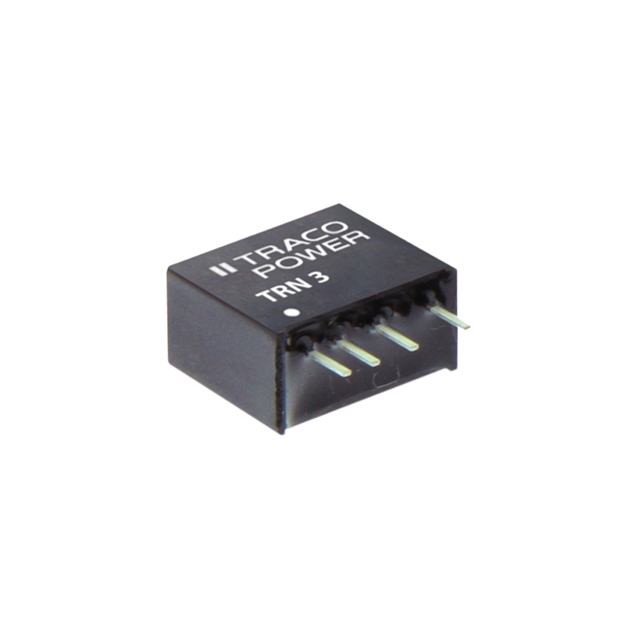

Same model may have multiple batches, images only for reference.

TRN 3-0521

Name: TRN 3-0521
Brand: Traco Power
SKU: 1336362
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	TRN 3-0521
Manufacturer	Traco Power
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER +/-5V 3W / Isolated Module DC DC Converter 2 Output 5V -5V 300mA, 300mA 4.5V - 13.2V Input
Datasheet	TRN 3-0521 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount>DC DC Converters
Manufacturer	Traco Power
Packaging	Tube
Type	Isolated Module
Number of Outputs	2
Voltage - Input (Min)	4.5V
Voltage - Input (Max)	13.2V
Voltage - Output 1	5V
Voltage - Output 2	-5V
Current - Output (Max)	300mA, 300mA
Power (Watts)	3 W
Voltage - Isolation	1.6 kV
Applications	ITE (Commercial)
Features	SCP
Temperature Range - Operating	-40°C ~ 85°C
Efficiency	77%
Mounting	Through Hole
Case / Package	5-SIP Module
Size / Dimension	0.47" L x 0.30" W x 0.43" H (11.9mm x 7.7mm x 11.0mm)
Base Product Number	TRN 3
RoHS Status	ROHS3 Compliant
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.40.9580
Other Part Number	TRN 3-0521-ND,TRN3-0521
Standard Package	10
Win Source Part Number	1336362-TRN 3-0521
Ultra Librarian 3D Model	Ultra Librarian TRN 3-0521 CAD Model

Alternative Products

Description

The Traco Power TRN 3-0521 DC-DC converter is a highly efficient module that provides 3W of power.

Package Quantity: 10
Features: SCP (short circuit protection)
Application: ITE (commercial)
Module Size: 0.47" L x 0.30" W x 0.43" H (11.9mm x 7.7mm x 11.0mm)
Voltage Isolation: 1.6 kV
Outputs: Two
Current Output: 300mA each
Input Voltage: 4.5V to 13.2V
Output Voltage: 5V and -5V
Efficiency: 77%
Operating Temperature: -40°C to 85°C
Mounting: Through hole
Package: 5-SIP module package
ROHS3 Compliant: Yes
REACH: Unaffected
