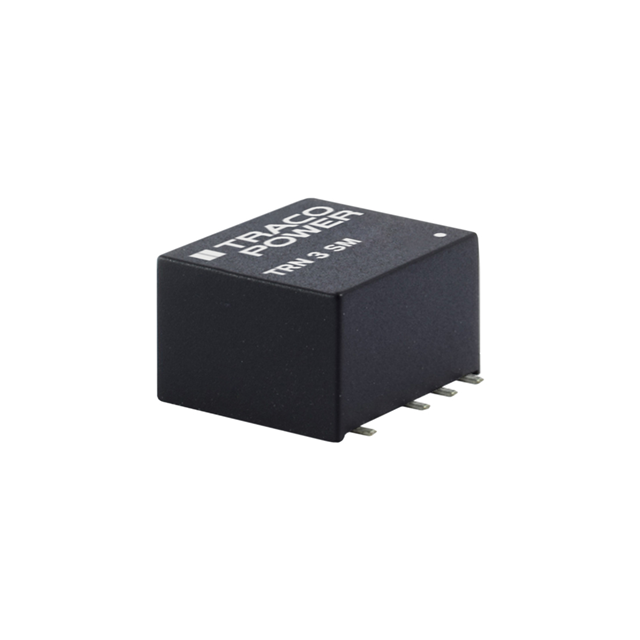

Same model may have multiple batches, images only for reference.

TRN 3-0521SM

Name: TRN 3-0521SM
Brand: Traco Power
SKU: 1336380
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	TRN 3-0521SM
Manufacturer	Traco Power
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER +/-5V 3W / Isolated Module DC DC Converter 2 Output 5V -5V 300mA, 300mA 4.5V - 13.2V Input
Datasheet	TRN 3-0521SM Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount>DC DC Converters
Manufacturer	Traco Power
Packaging	Tube
Type	Isolated Module
Number of Outputs	2
Voltage - Input (Min)	4.5V
Voltage - Input (Max)	13.2V
Voltage - Output 1	5V
Voltage - Output 2	-5V
Current - Output (Max)	300mA, 300mA
Power (Watts)	3 W
Voltage - Isolation	1.6 kV
Applications	ITE (Commercial)
Features	SCP
Temperature Range - Operating	-40°C ~ 85°C
Efficiency	77%
Mounting	Surface Mount
Case / Package	7-SMD Module
Size / Dimension	0.47" L x 0.44" W x 0.31" H (11.9mm x 11.3mm x 8.0mm)
Base Product Number	TRN 3
RoHS Status	ROHS3 Compliant
MSL Level	2 (1 Year)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.40.9580
Other Part Number	TRN3-0521SM,TRN 3-0521SM-ND
Standard Package	10
Win Source Part Number	1336380-TRN 3-0521SM
Ultra Librarian 3D Model	Ultra Librarian TRN 3-0521SM CAD Model

Alternative Products

Description

The Traco Power TRN 3-0521SM is an isolated module DC-DC converter with a power rating of 3W.

Voltage Isolation: 1.6kV
Efficiency: 77%
Outputs: Two outputs
Maximum Current Output: 300mA for each output
Input Voltage: 4.5V to 13.2V
Dimension: 0.47" L x 0.44" W x 0.31" H (11.9mm x 11.3mm x 8.0mm)
Packaging: Tube
