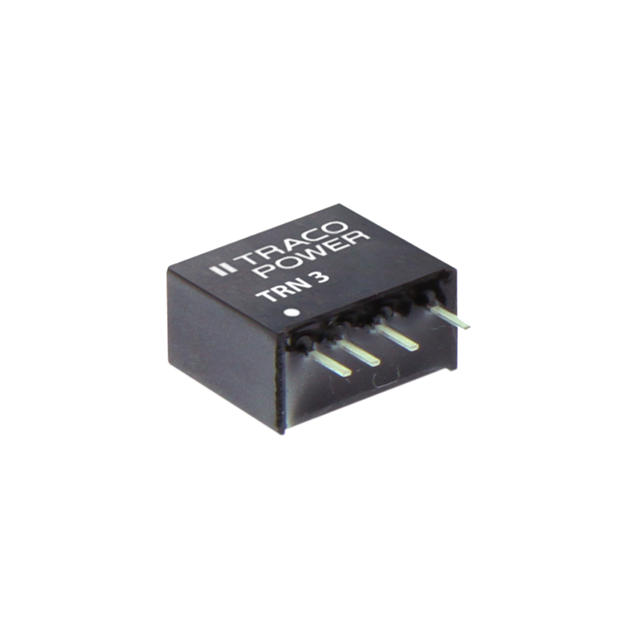

Same model may have multiple batches, images only for reference.

TRN 3-1222

Name: TRN 3-1222
Brand: Traco Power
SKU: 1336378
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	TRN 3-1222
Manufacturer	Traco Power
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER +/-12V 3W / Isolated Module DC DC Converter 2 Output 12V -12V 125mA, 125mA 9V - 18V Input
Datasheet	TRN 3-1222 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount>DC DC Converters
Manufacturer	Traco Power
Packaging	Tube
Type	Isolated Module
Number of Outputs	2
Voltage - Input (Min)	9V
Voltage - Input (Max)	18V
Voltage - Output 1	12V
Voltage - Output 2	-12V
Current - Output (Max)	125mA, 125mA
Power (Watts)	3 W
Voltage - Isolation	1.6 kV
Applications	ITE (Commercial)
Features	SCP
Temperature Range - Operating	-40°C ~ 85°C
Efficiency	82%
Mounting	Through Hole
Case / Package	5-SIP Module
Size / Dimension	0.47" L x 0.30" W x 0.43" H (11.9mm x 7.7mm x 11.0mm)
Base Product Number	TRN 3
RoHS Status	ROHS3 Compliant
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.40.9580
Other Part Number	2266-TRN 3-1222,TRN3-1222,TRN 3-1222-ND
Standard Package	10
Win Source Part Number	1336378-TRN 3-1222
Ultra Librarian 3D Model	Ultra Librarian TRN 3-1222 CAD Model

Alternative Products

Description

The Traco Power 1336378-TRN 3-1222 is a DC-DC converter module designed for ITE (Commercial) applications.

Power Rating: 3 W
Outputs: 2 outputs
Isolation Voltage: 1.6 kV
Size: 0.47" L x 0.30" W x 0.43" H (11.9mm x 7.7mm x 11.0mm)
Mounting: Through hole
Protection: SCP protection
Efficiency: 82%
Input Voltage: 9V to 18V
Output Voltages: 12V and -12V
Operating Temperature: -40°C to 85°C
Package: 5-SIP module package
Compliance: ROHS3 compliant
REACH Regulations: Not affected
