Same model may have multiple batches, images only for reference.

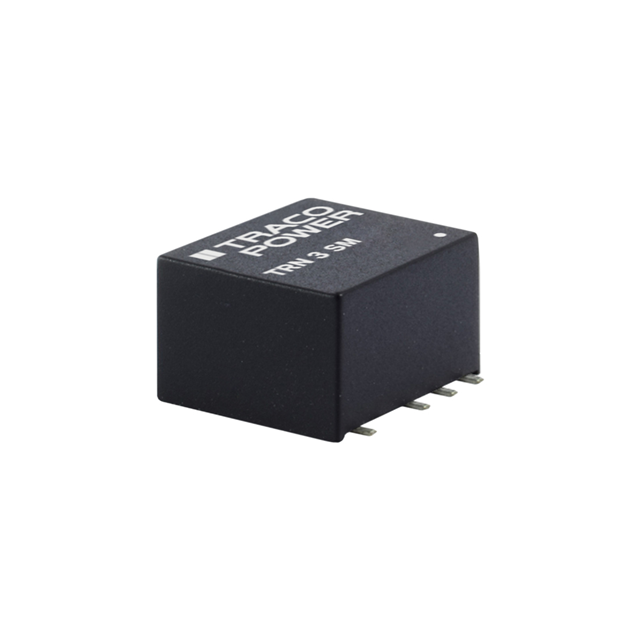

TRN 3-4822SM Real Image
Same model may have multiple batches, images only for reference.

TRN 3-4822SM

Part No TRN 3-4822SM
Manufacturer Traco Power
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER +/-12V 3W / Isolated Module DC DC Converter 2 Output 12V -12V 125mA, 125mA 36V - 75V Input
Datasheet
TRN 3-4822SM Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Manufacturer Traco Power
Packaging Tube
Type Isolated Module
Number of Outputs 2
Voltage - Input (Min) 36V
Voltage - Input (Max) 75V
Voltage - Output 1 12V
Voltage - Output 2 -12V
Current - Output (Max) 125mA, 125mA
Power (Watts) 3 W
Voltage - Isolation 1.6 kV
Applications ITE (Commercial)
Features SCP
Temperature Range - Operating -40°C ~ 85°C
Efficiency 82%
Mounting Surface Mount
Case / Package 7-SMD Module
Size / Dimension 0.47" L x 0.44" W x 0.31" H (11.9mm x 11.3mm x 8.0mm)
Base Product Number TRN 3
RoHS Status ROHS3 Compliant
MSL Level 2A (4 Weeks)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Other Part Number TRN 3-4822SM-ND,TRN3-4822SM
Standard Package 10
Win Source Part Number 1336387-TRN 3-4822SM
Ultra Librarian 3D Model Ultra Librarian TRN 3-4822SM CAD Model

Description

The TRN 3-4822SM is a 3 W isolated module DC-DC converter in a 7-SMD module package.

  • Voltage Isolation: 1.6 kV
  • Outputs: Two outputs
  • Maximum Current Output: 125mA each
  • Efficiency: 82%
  • Voltage Input: 36V to 75V
  • Voltage Output: 12V and -12V
  • Compliance: RoHS3 compliant
  • Temperature Range: -40°C to 85°C
  • Application: Commercial applications requiring surface mount components
