Same model may have multiple batches, images only for reference.

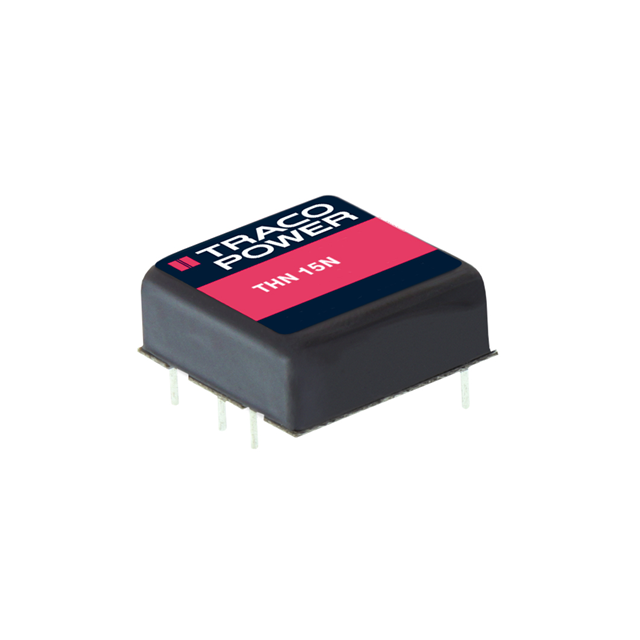

THN 15-1223N Real Image
Same model may have multiple batches, images only for reference.

THN 15-1223N

Part No THN 15-1223N
Manufacturer Traco Power
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER +/-15V 15W / Isolated Module DC DC Converter 2 Output 15V -15V 500mA, 500mA 9V - 18V Input
Datasheet
THN 15-1223N Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Manufacturer Traco Power
Packaging Tube
Type Isolated Module
Number of Outputs 2
Voltage - Input (Min) 9V
Voltage - Input (Max) 18V
Voltage - Output 1 15V
Voltage - Output 2 -15V
Current - Output (Max) 500mA, 500mA
Power (Watts) 15 W
Voltage - Isolation 1.6 kV
Applications ITE (Commercial)
Features Remote On/Off, OCP, OVP, SCP
Temperature Range - Operating -40°C ~ 105°C (With Derating)
Efficiency 90%
Mounting Through Hole
Case / Package 6-DIP Module
Size / Dimension 1.00" L x 1.00" W x 0.39" H (25.4mm x 25.4mm x 9.9mm)
Base Product Number THN 15
RoHS Status ROHS3 Compliant
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Other Part Number THN15-1223N,THN15-1223NINACTIVE,1951-3277,THN15-1223N-ND
Standard Package 10
Win Source Part Number 1335967-THN 15-1223N
Ultra Librarian 3D Model Ultra Librarian THN 15-1223N CAD Model

Description

The Traco Power THN 15-1223N is a 15 W isolated module DC-DC converter with remote on/off, OCP, OVP, and SCP features.

  • Voltage Isolation: 1.6 kV
  • Outputs: Two outputs of 15V and -15V
  • Maximum Output Current: 500mA each
  • Size: 1.00" L x 1.00" W x 0.39" H (25.4mm x 25.4mm x 9.9mm)
  • Applications: ITE (Commercial)
  • Temperature Range: -40°C ~ 105°C (With Derating)
  • Mounting Type: Through-hole
  • Package: 6-DIP module
