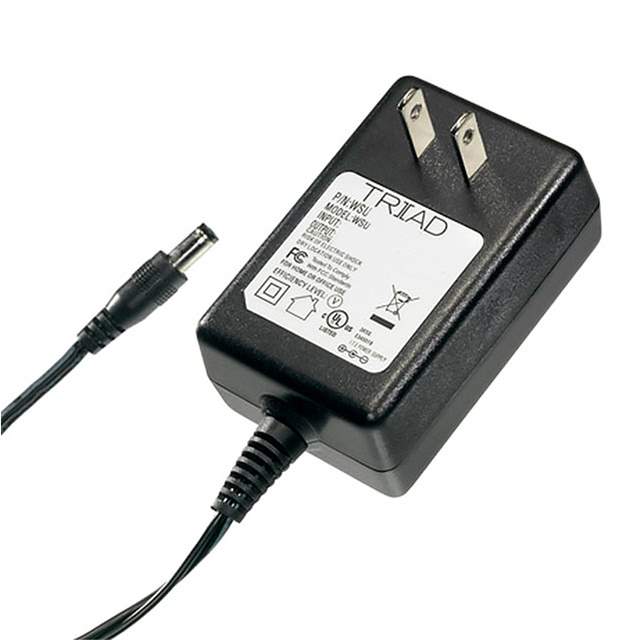

WSU120-3000 Real Image
Same model may have multiple batches, images only for reference.

WSU120-3000

Part No WSU120-3000
Manufacturer Triad Magnetics
Catalog AC DC Desktop, Wall Adapters
Description AC/DC WALL MOUNT ADAPTER 12V 36W / 12V 36 W AC/DC External Wall Mount (Class II) Adapter Fixed Blade Input
Datasheet
WSU120-3000 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - External/Internal (Off-Board)>AC DC Desktop, Wall Adapters
Mfr Triad Magnetics
Series WSU
Package Box
Region Utilized North America
Form Wall Mount (Class II)
Input Type Fixed Blade
Voltage - Input 90 ~ 264 VAC
Voltage - Output 12V
Current - Output (Max) 3A
Power (Watts) 36 W
No Load Power Consumption 100mW (Max)
Polarization Positive Center
Applications ITE (Commercial)
Efficiency Level VI
Temperature Range - Operating 0°C ~ 40°C
Output Connector Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm
Cord Length 60" (1.52m)
Input Connector NEMA 1-15P
Dimension 3.03" L x 1.89" W x 1.22" H (77.0mm x 48.0mm x 31.0mm)
Approval Agency cETLus
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9510
Other Names WSU1203000,237-1443,Q8334268
Standard Package 1
Win Source Part Number 1184206-WSU120-3000
Ultra Librarian 3D Model Ultra Librarian WSU120-3000 CAD Model

Description

The WSU120-3000 is a high-quality AC DC desktop wall adapter from Triad Magnetics.

  • Power Output: 36 watts
  • Voltage Output: 12V
  • Application: ITE (Commercial)
  • Input Voltage Range: 90 ~ 264 VAC
  • Input Type: Fixed Blade with Positive Center Polarization
  • Efficiency Level: Level VI
  • Form Factor: Wall Mount (Class II)
  • Output Connector: Barrel Plug with a 2.1mm I.D. x 5.5mm O.D. x 11.0mm
  • Input Connector: NEMA 1-15P
  • Cord Length: 60" (1.52m)
  • Operating Temperature Range: 0°C ~ 40°C
  • Dimension: 3.03" L x 1.89" W x 1.22" H (77.0mm x 48.0mm x 31.0mm)
  • Approval: cETLus
