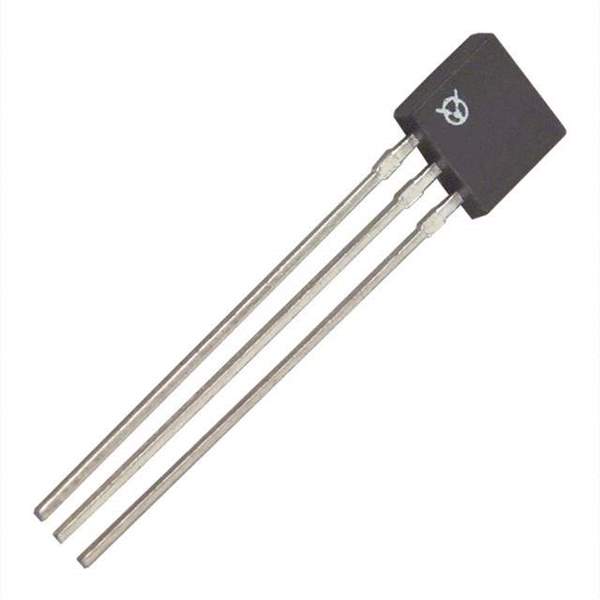

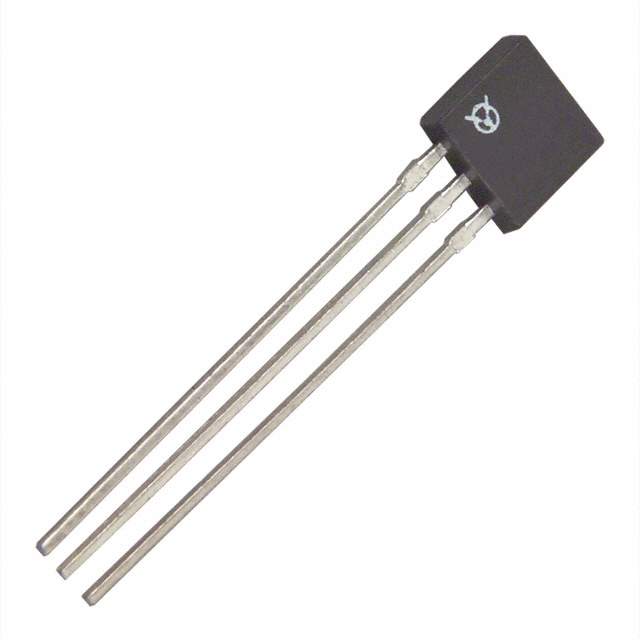

OHN3120U Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Sensors, Transducers
Manufacturer TT Electronics/Optek Technology
Packaging Bulk
Status Active
Purpose Unipolar Switch
Technology Hall Effect
Polarization South Pole
Sensing Range 42.5mT Trip, 5mT Release
Testing Conditions -20°C to 85°C
Supply Voltage - Operating 4.5 V to 24 V
Current - Supply (Max) 7mA
Current - Output (Max) 25mA
Output Type Open Collector
Temperature Range - Operating -20°C to 85°C (TA)
Case / Package TO-92-3
Win Source Part Number 045393-OHN3120U
Popularity Medium
Supply and Demand Status Limited
Quantity per package 1k pcs
Ultra Librarian 3D Model Ultra Librarian OHN3120U CAD Model

Description

The TT Electronics/Optek Technology 045393-OHN3120U is an active unipolar switch with a sensing range of 42.5mT trip and 5mT release.

  • The current supply (max) for this product is 7mA, and the current output (max) is 25mA.
  • The temperature range for operating this product is -20°C to 85°C (TA), and it comes in a TO-92-3 package.
  • This product is suitable for use in various electronic devices.
