OP506W TT Electronics – Price, Stock & Datasheet

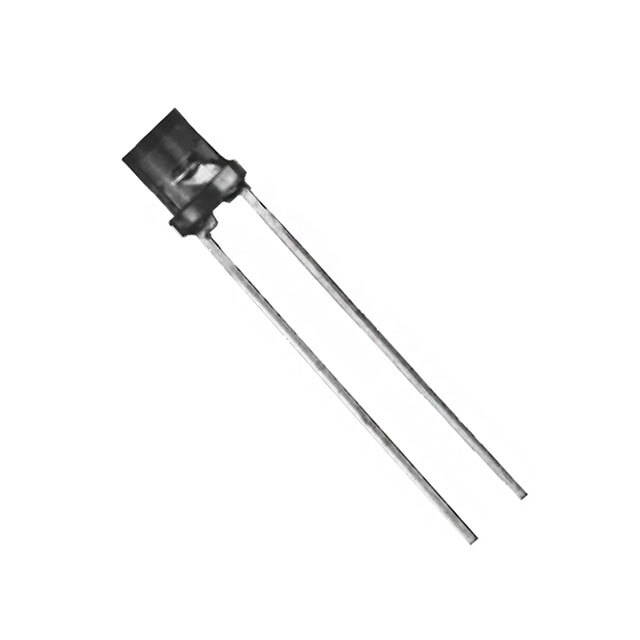

Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Voltage - Collector Emitter Breakdown (Max) 30 V
Current - Collector (Ic) (Max) 100 µA
Current - Dark (Id) (Max) 100 nA
Wavelength 935nm
Power - Max 100 mW
Mounting Type Through Hole
Orientation Top View
Temperature Range - Operating -40°C ~ 100°C
Case / Package T-1
Package Bulk
Supply and Demand Status Shortage
Win Source Part Number 1599949-OP506W
Ultra Librarian 3D Model Ultra Librarian OP506W CAD Model
