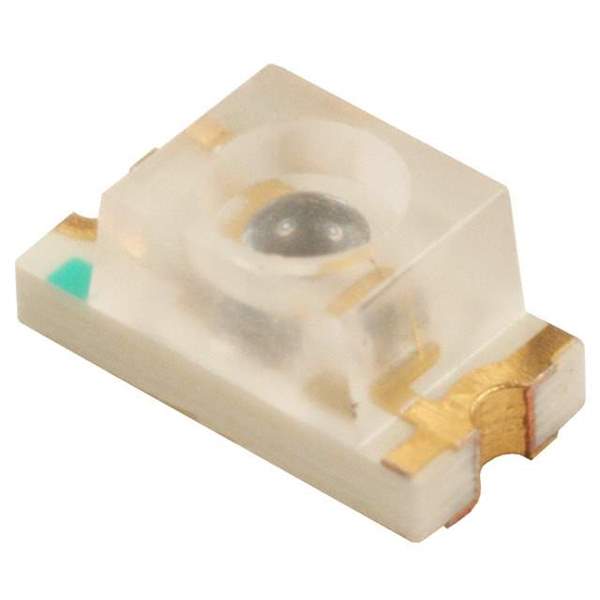

OP522 Real Image
Same model may have multiple batches, images only for reference.

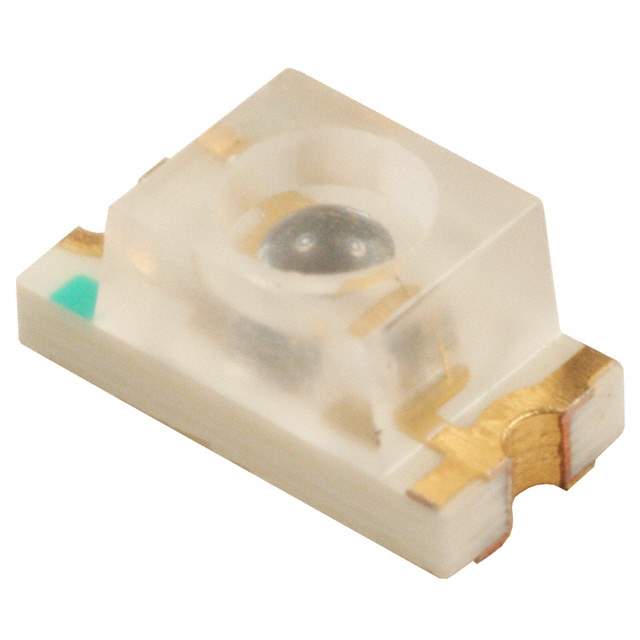

OP522

Part No OP522
Manufacturer TT Electronics
Catalog Optical Sensors - Phototransistors
Description SENSOR PHOTO 935NM TOP VIEW 1206 / Phototransistors 935nm Top View 1206 (3216 Metric)
Datasheet
OP522 Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers>Optical Sensors - Phototransistors
Manufacturer TT Electronics/Optek Technology
Packaging Reel - TR
Product Status Obsolete
Voltage - Collector Emitter Breakdown (Max) 30 V
Current - Collector (Ic) (Max) 20 mA
Current - Dark (Id) (Max) 100 nA
Wavelength 935nm
Power - Max 75 mW
Mounting Surface Mount
Orientation Top View
Temperature Range - Operating -25°C ~ 85°C
Case / Package 1206 (3216 Metric)
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.49.7080
Other Part Number 365-1157-1,365-1157-2,365-1157-6
Standard Package 2,000
Win Source Part Number 1336628-OP522
Ultra Librarian 3D Model Ultra Librarian OP522 CAD Model

Description

The Optek Technology OP522 is an obsolete optical sensor phototransistor that is designed for use in various applications.

  • Win Source Part Number: 1336628-OP522
  • Standard Package: 2,000
  • Maximum Power: 75 mW
  • Maximum Voltage: 30 V
  • Current - Collector (Ic) (Max): 20 mA
  • Current - Dark (Id) (Max): 100 nA
  • Operating Temperature: -25°C to 85°C
  • Case/Package: 1206 (3216 Metric)
