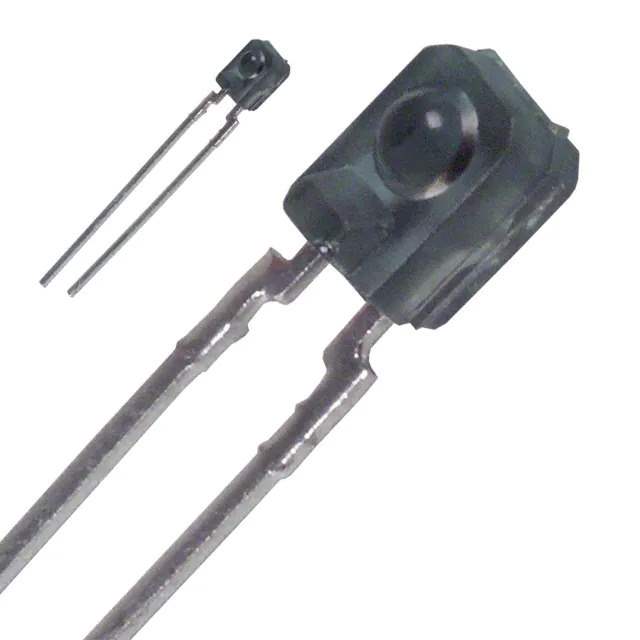

PT481E00000F Real Image
Same model may have multiple batches, images only for reference.

PT481E00000F

Part No PT481E00000F
Manufacturer Sharp Microelectronics
Catalog Optical Sensors - Phototransistors
Description SENSOR PHOTO 800NM SIDE VIEW RAD / Phototransistors 800nm Side View Radial
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers - Optical Sensors - Phototransistors
Mfr Sharp Microelectronics
Package Tube
Product Status Obsolete
Voltage - Collector Emitter Breakdown (Max) 35 V
Current - Collector (Ic) (Max) 50 mA
Current - Dark (Id) (Max) 1 mA
Wavelength 800nm
Viewing Angle 70°
Power - Max 75 mW
Mounting Type Through Hole
Orientation Side View
Temperature Range - Operating -25°C ~ 85°C (TA)
Package / Case Radial
Standard Package 50 pcs
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN EAR99
HTSUS 8541.49.7080
Win Source Part Number 657653-PT481E00000F
Ultra Librarian 3D Model Ultra Librarian PT481E00000F CAD Model

Description

The PT481E00000F is a phototransistor optical sensor from Sharp Microelectronics.

  • Package: Radial
  • Viewing Angle: 70°
  • Maximum Power: 75mW
  • Maximum Collector-Emitter Breakdown Voltage: 35V
  • Maximum Collector Current: 50mA
  • Wavelength: 800nm
  • Dark Current: Maximum of 1mA
  • Mounting Type: Through-Hole
  • Operating Temperature Range: -25°C to 85°C
  • Status: Obsolete
  • Moisture Sensitivity Level: 1 (unlimited)
