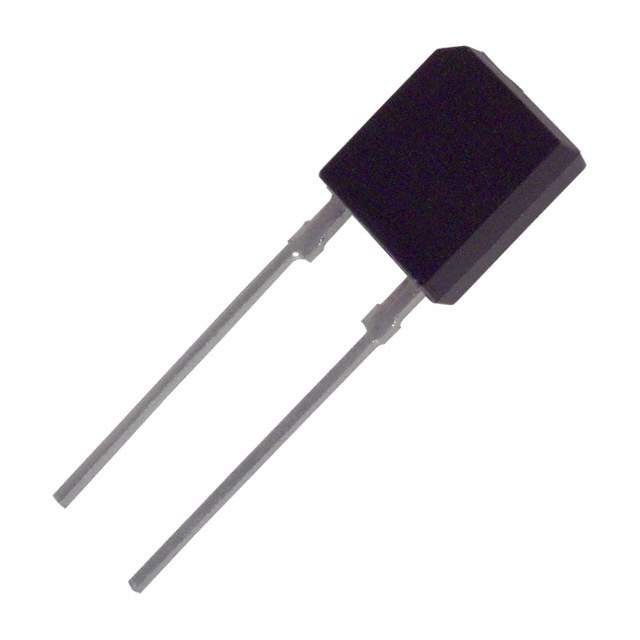

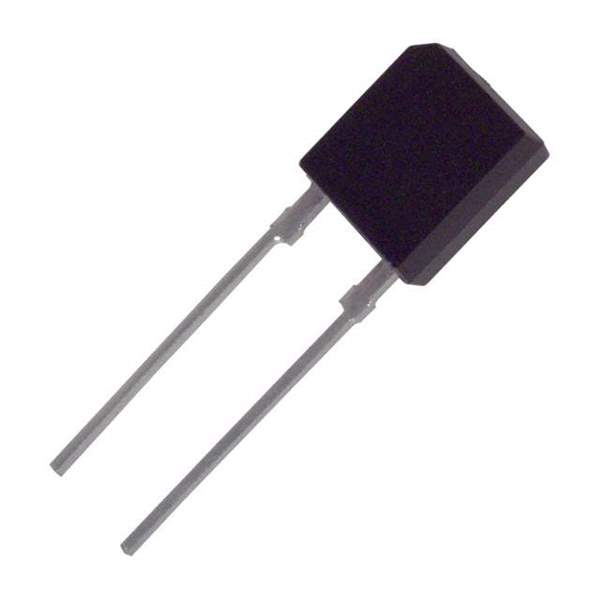

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Sensors, Transducers
Manufacturer Sharp Microelectronics
Packaging Tube/Rail
Status Obsolete(EOL)
Wavelength 960nm
Spectral Range 680nm to 1200nm
Voltage - DC Reverse (Vr) (Max) 32V
Current - Dark (Typ) 1nA
Temperature Range - Operating -25°C to 85°C
Mounting Through Hole
Dimension Side View
Win Source Part Number 1087117-PD481PI
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian PD481PI CAD Model

Description

The PD481PI from Sharp Microelectronics is a side view photodiode with a maximum reverse voltage of 32V.

  • Wavelength: 960nm
  • Spectral Range: 680nm to 1200nm
  • Current Dark (typ): 1nA
  • Suitable for: Use in sensors and transducers
  • Operating Temperature Range: -25°C to 85°C
  • Status: Obsolete (EOL)
  • Popularity: Medium
