Same model may have multiple batches, images only for reference.

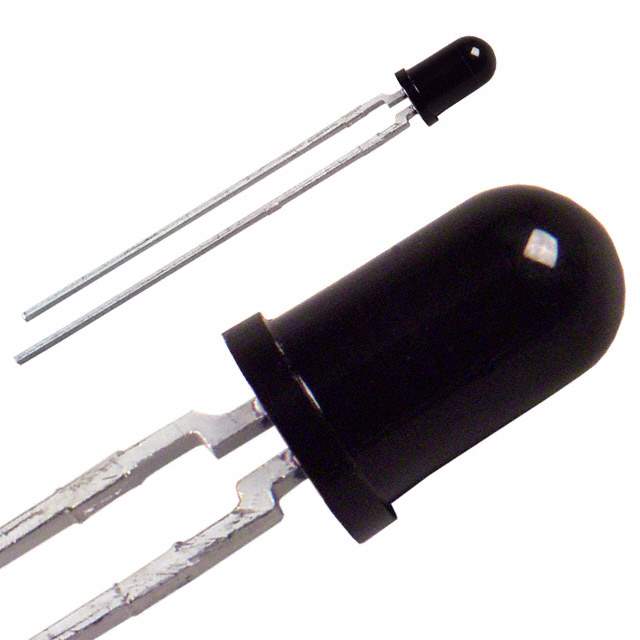

SFH229FA Real Image
Same model may have multiple batches, images only for reference.

SFH229FA

Part No SFH229FA
Manufacturer OSRAM Opto Semiconductors Inc.
Catalog Optical Sensors - Photodiodes
Description Photodiode PIN Chip 900nm 0.6A/W Sensitivity 2-Pin T-1 T/R / PHOTODIODE 900NM 3MM W/FILTER
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Sensors, Transducers
Manufacturer OSRAM Opto Semiconductors Inc.
Packaging Bulk
Status Active
Wavelength 900nm
Spectral Range 730nm to 1100nm
Diode Type PIN
Responsivity @ nm 0.6 A/W @ 850nm
Response Time 10ns
Voltage - DC Reverse (Vr) (Max) 20V
Current - Dark (Typ) 50pA
Active Area 0.31mm2
Viewing Angle 34°
Temperature Range - Operating -40°C to 100°C
Mounting Through Hole
Dimension Radial
Win Source Part Number 084028-SFH229FA
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Family Name SFH229FA
Introduction Date October 15, 1999
ECCN EAR99
Country of Origin Malaysia
Estimated EOL Date 2025
Ultra Librarian 3D Model Ultra Librarian SFH229FA CAD Model

Description

The OSRAM Opto Semiconductors Inc. 084028-SFH229FA is a PIN diode type electronic component that is commonly used in various applications.

  • Supply and Demand Status: limited
  • Manufactured by: OSRAM Opto Semiconductors Inc.
  • Available with the Win Source Part Number
  • Response time: 10ns
  • Voltage - DC Reverse (Vr) (Max): 20V
  • Active Area: 0.31mm2
  • Viewing Angle: 34 degrees
  • Operating Temperature Range: -40°C to 100°C
