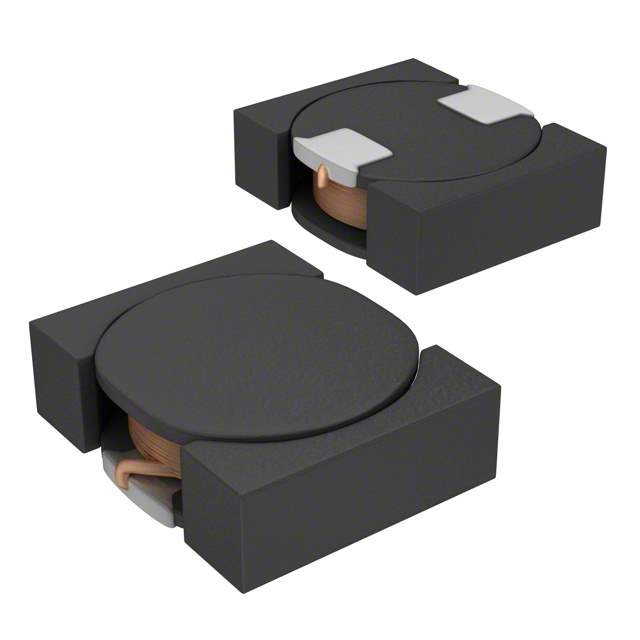

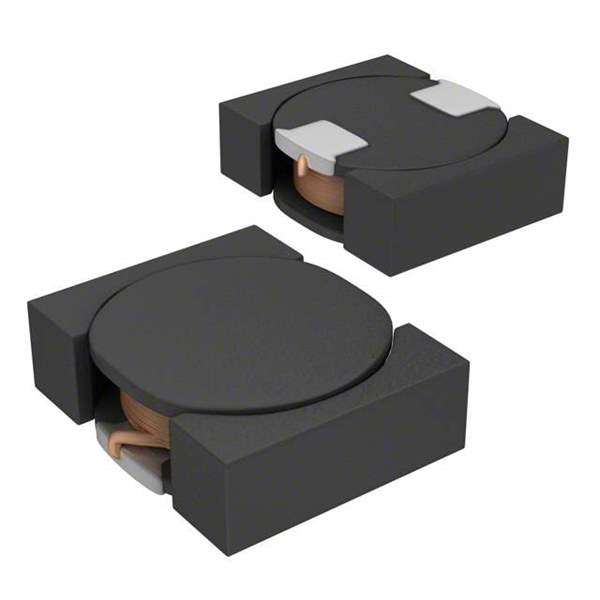

VLF403212MT-2R2M Real Image
Same model may have multiple batches, images only for reference.

VLF403212MT-2R2M

Part No VLF403212MT-2R2M
Manufacturer TDK Corporation
Catalog Fixed Inductors
Description FIXED IND 2.2UH 2.48A 65 MOHM / Inductors for Power Circuits Wound Ferrite
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer TDK Corporation
Packaging Reel
Part Status Obsolete (End Of Life)
Type Wirewound
Material - Core Ferrite
Inductance 2.2μH
Tolerance ±20%
Current Rating (Amps) 2.48A
Current - Saturation 2.05A
Shielding Shielded
DC Resistance (DCR) 65mOhm Max
Temperature Range - Operating -40°C ~ 105°C
Inductance Frequency - Test 1MHz
Mounting Style SMD
Manufacturer Package Nonstandard
Dimension 0.157" L x 0.126" W (4.00mm x 3.20mm)
Height - Seated (Maximum) 0.047" (1.20mm)
Manufacturer Pack Quantity 1,000
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Balance
Win Source Part Number 808548-VLF403212MT-2R2M
Ultra Librarian 3D Model Ultra Librarian VLF403212MT-2R2M CAD Model

Description

The TDK Corporation VLF403212MT-2R2M is an obsolete (end of life) wirewound, shielded inductor from TDK Corporation.

  • Inductance: 2.2μH
  • Tolerance: ±20%
  • Core Material: ferrite
  • Current Saturation: 2.05A
  • Mounting: SMD
  • Operating Temperature: -40ŶC ~ 105ŶC
  • Dimension: 0.157" L x 0.126" W (4.00mm x 3.20mm)
  • Manufacturer Package: nonstandard
  • Height Seated (Maximum): 0.047" (1.20mm)
  • Supply and Demand Status: balance
  • Manufacturer Pack Quantity: 1,000
  • MSL Level: 1 (unlimited)
  • Current Rating (amps): 2.48A
  • Inductance Frequency Test: 1MHz
