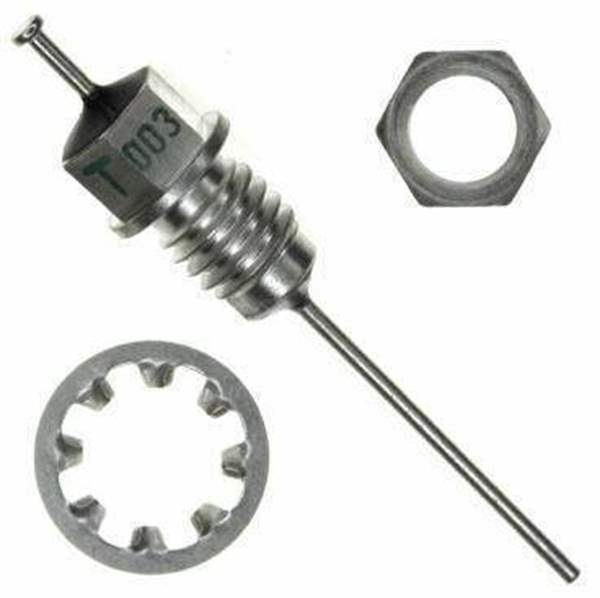

4209-003LFTusonix a Subsidiary of CTS Electronic Components
Same model may have multiple batches, images only for reference.

4209-003LF

Part No 4209-003LF
Manufacturer Tusonix a Subsidiary of CTS Electronic Components
Catalog EMI/RFI Filters (LC, RC Networks)
Description FILTER LC(PI) 1500PF CHASSIS
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number Cross
Manufacturer Tusonix a Subsidiary of CTS Electronic Components
Category Filters EMI/RFI Filters (LC, RC Networks)
Package Bulk
Product Status Active
Filter Order 3rd
Technology LC (Pi)
Attenuation Value 45dB @ 100MHz
Operating Temperature -55°C ~ 125°C
Applications Data Lines for Mobile Devices
Mounting Type Chassis Mount
Win Source Part Number WS1208402-4209-003LF
Ultra Librarian 3D Model Ultra Librarian 4209-003LF CAD Model

Description

LC (Pi) EMI Filter 3rd Order Low Pass 1 Channel C = 1500pF 10 A Axial, Bushing, 1 Turret Lead
