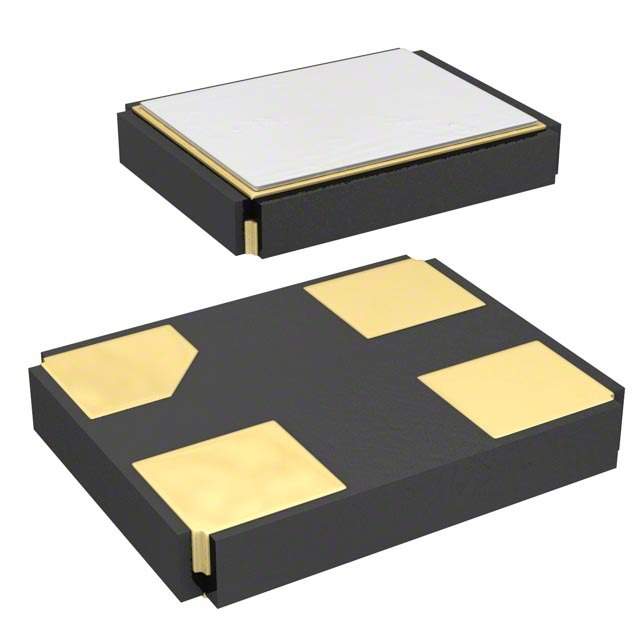

7L26002007 Real Image
Same model may have multiple batches, images only for reference.

7L26002007

Part No 7L26002007
Manufacturer TXC CORPORATION
Catalog Oscillators
Description OSC TCXO 26MHZ 2.8V SMD
Datasheet
7L26002007 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Crystals, Oscillators, Resonators
Manufacturer TXC CORPORATION
Series 7L
Packaging Reel package
Type TCXO
Frequency 26MHz
Output Clipped Sine Wave
Operating Supply Voltage 2.8V
Operating Temperature Range -30°C ~ 85°C
Mounting SMD
Package 4-SMD, No Lead
Dimension 0.098" L x 0.079" W (2.50mm x 2.00mm)
Height - Seated (Maximum) 0.031" (0.80mm)
Win Source Part Number 766223-7L26002007
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian 7L26002007 CAD Model

Description

The 766223-7L26002007 is a TCXO Type product from TXC CORPORATION.

  • Series: 7L
  • Frequency: 26MHz
  • Package: 4-SMD, No Lead
  • Operating Temperature: -30°C ~ 85°C
  • Output: Clipped Sine Wave
  • Mounting: SMD
  • Supply and Demand Status: Balanced
