Same model may have multiple batches, images only for reference.

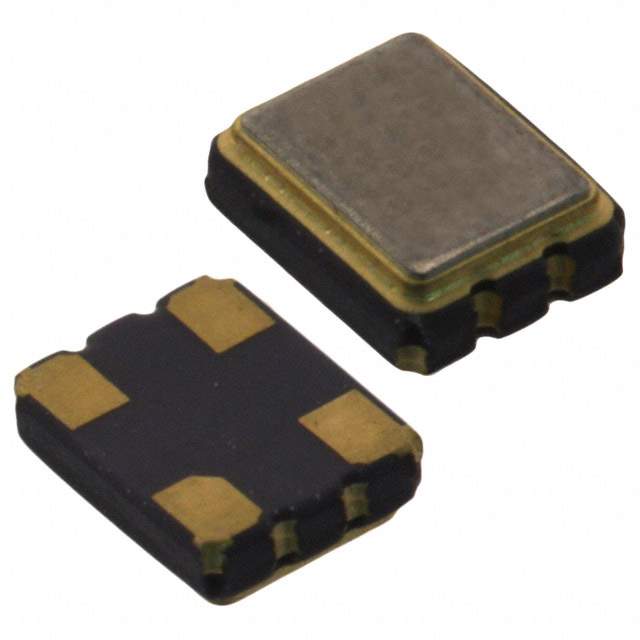

7X54070001 Real Image
Same model may have multiple batches, images only for reference.

7X54070001

Part No 7X54070001
Manufacturer TXC CORPORATION
Catalog Oscillators
Description XTAL OSC XO 54MHZ 3.3V CMOS SMD / 54 MHz XO (Standard) CMOS Oscillator 3.3V Enable/Disable 4-SMD, No Lead
Datasheet
7X54070001 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators - Oscillators
Mfr TXC CORPORATION
Series 7X
Package Strip
Base Resonator Crystal
Type XO (Standard)
Frequency 54 MHz
Function Enable/Disable
Output CMOS
Voltage - Supply 3.3V
Frequency Stability ±50ppm
Temperature Range - Operating -40°C ~ 105°C
Current - Supply (Max) 15mA
Mounting Type Surface Mount
Package / Case 4-SMD, No Lead
Size / Dimension 0.126" L x 0.098" W (3.20mm x 2.50mm)
Height - Seated (Max) 0.043" (1.10mm)
Standard Package 100
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
Win Source Part Number 1339318-7X54070001
Ultra Librarian 3D Model Ultra Librarian 7X54070001 CAD Model

Description

The TXC CORPORATION 1339318-7X54070001 XO oscillator is a surface mount component that measures 0.126 inches in length and 0.098 inches in width.

  • Length: 0.126 inches
  • Width: 0.098 inches
  • Frequency: 54 MHz
  • Frequency Stability: ±50ppm
  • Output: CMOS
  • Current - Supply: 15mA
  • Operating Temperature: -40°C to 105°C
  • Packaging: Strip
  • Standard Package: 100
  • Package / Case: 4-SMD, No Lead
  • Height - Seated (Max): 0.043 inches
  • Series: 7X
  • REACH Status: Unaffected
  • ECCN: EAR99
