Same model may have multiple batches, images only for reference.

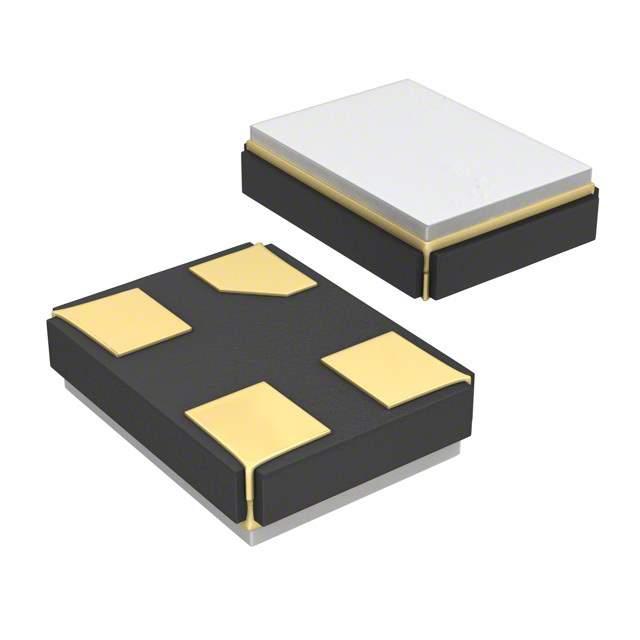

8Z-16.000MEEQ-T Real Image
Same model may have multiple batches, images only for reference.

8Z-16.000MEEQ-T

Part No 8Z-16.000MEEQ-T
Manufacturer TXC CORPORATION
Catalog Oscillators
Datasheet
8Z-16.000MEEQ-T Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators>Crystals
Mfr TXC CORPORATION
Series 8Z
Package Tape & Reel
Type MHz Crystal
Frequency 16 MHz
Frequency Stability ±10ppm
Frequency Tolerance ±10ppm
Load Capacitance 10pF
ESR (Equivalent Series Resistance) 100 Ohms
Operating Mode Fundamental
Temperature Range - Operating -20°C ~ 70°C
Mounting SMD (SMT)
Package / Case 4-SMD, No Lead
Dimension 0.098" L x 0.079" W (2.50mm x 2.00mm)
Height - Seated (Max) 0.022" (0.55mm)
Other Names 887-1336-6,887-1336-2,887-1336-1,8Z16000MEEQT
Standard Package 3,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.60.0050
Win Source Part Number 1284979-8Z-16.000MEEQ-T
Ultra Librarian 3D Model Ultra Librarian 8Z-16.000MEEQ-T CAD Model

Description

The 1284979-8Z-16.000MEEQ-T is a MHz crystal from TXC CORPORATION's 8Z series.

  • Package: 4-SMD, No Lead
  • Frequency: 16 MHz
  • ESR: 100 Ohms
  • Frequency Stability: ±10ppm
  • Frequency Tolerance: ±10ppm
  • Temperature Range: -20°C ~ 70°C
  • Dimension: 0.098" L x 0.079" W (2.50mm x 2.00mm)
