Same model may have multiple batches, images only for reference.

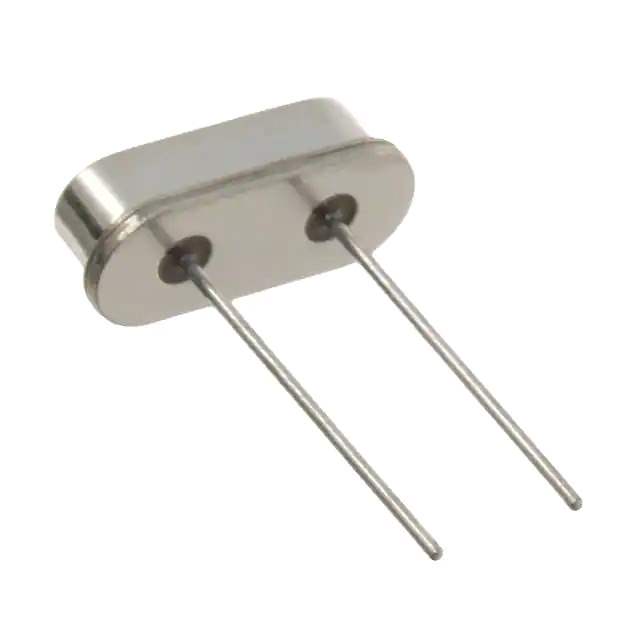

9B-25.000MAAJ-B Real Image
Same model may have multiple batches, images only for reference.

9B-25.000MAAJ-B

Part No 9B-25.000MAAJ-B
Manufacturer TXC CORPORATION
Catalog Oscillators
Description CRYSTAL 25.0000MHZ 18PF TH / 25 MHz ±30ppm Crystal 18pF 30 Ohms HC-49/US
Datasheet
9B-25.000MAAJ-B Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators - Crystals
Mfr TXC CORPORATION
Series 9B
Package Bulk
Product Status Obsolete
Type MHz Crystal
Frequency 25 MHz
Frequency Stability ±30ppm
Frequency Tolerance ±30ppm
Load Capacitance 18pF
ESR (Equivalent Series Resistance) 30 Ohms
Operating Mode Fundamental
Temperature Range - Operating -20°C ~ 70°C
Mounting Type Through Hole
Package / Case HC-49/US
Size / Dimension 0.453" L x 0.197" W (11.50mm x 5.00mm)
Height - Seated (Max) 0.145" (3.68mm)
Standard Package 1,000 pcs
MSL Level Not Applicable
REACH Status REACH Affected
ECCN EAR99
HTSUS 8541.60.0060
Win Source Part Number 858730-9B-25.000MAAJ-B
Ultra Librarian 3D Model Ultra Librarian 9B-25.000MAAJ-B CAD Model

Description

The 858730-9B-25.000MAAJ-B is a MHz Crystal from the 9B series of crystals, oscillators, and resonators. It is designed for use in various electronic applications that require a stable and accurate frequency of 25 MHz.

  • Series: 9B
  • Frequency: 25 MHz
  • Size: 0.453" L x 0.197" W (11.50mm x 5.00mm)
  • Height: 0.145" (3.68mm)
  • Mounting Type: Through Hole
  • Frequency Stability: ±30ppm
  • Frequency Tolerance: ±30ppm
  • Mode: Fundamental
  • Load Capacitance: 18pF
  • Package Type: Bulk
  • Temperature Range: -20°C to 70°C
  • Manufacturer: TXC CORPORATION
  • Product Status: Obsolete
