Same model may have multiple batches, images only for reference.

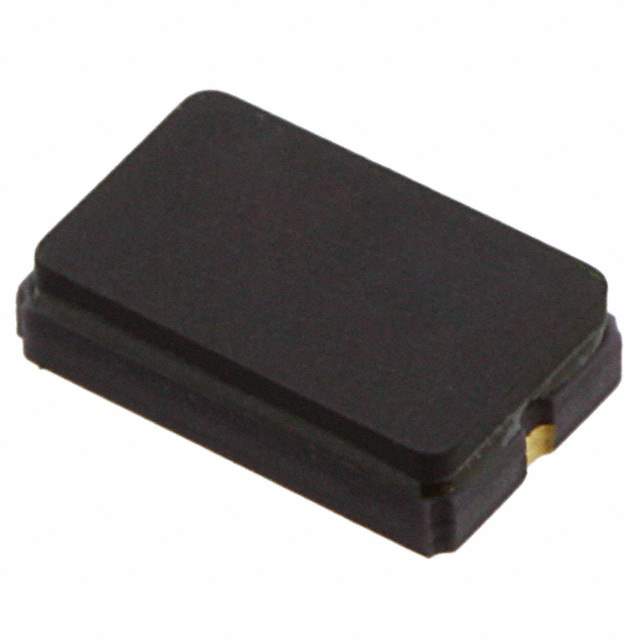

AA-8.000MALV-T Real Image
Same model may have multiple batches, images only for reference.

AA-8.000MALV-T

Part No AA-8.000MALV-T
Manufacturer TXC CORPORATION
Catalog Oscillators
Description CRYSTAL 8.0000MHZ 8PF SMD / 8 MHz ±30ppm Crystal 8pF 150 Ohms 2-SMD, No Lead
Datasheet
AA-8.000MALV-T Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators>Crystals
Manufacturer TXC CORPORATION
Packaging Reel - TR
Type MHz Crystal
Frequency 8 MHz
Frequency Stability ±150ppm
Frequency Tolerance ±30ppm
Load Capacitance 8pF
ESR (Equivalent Series Resistance) 150 Ohms
Operating Mode Fundamental
Temperature Range - Operating -40°C ~ 125°C
Ratings AEC-Q200
Mounting Surface Mount
Case / Package 2-SMD, No Lead
Size / Dimension 0.197" L x 0.126" W (5.00mm x 3.20mm)
Height - Seated (Max) 0.053" (1.35mm)
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.60.0050
Other Part Number 887-1667-2,AA08070001,887-1667-1,887-1667-6,AA08070001-ND,AA8000MALVT,Q10584236
Standard Package 1,000
Win Source Part Number 1328373-AA-8.000MALV-T
Ultra Librarian 3D Model Ultra Librarian AA-8.000MALV-T CAD Model

Description

The AA-8.000MALV-T is a high-performance crystal oscillator from TXC Corporation.

  • Frequency: 8MHz
  • Frequency Tolerance: ±30ppm
  • ESR: 150 Ohms
  • Frequency Stability: ±150ppm
  • Application: AEC-Q200
  • Temperature Range: -40°C to 125°C
  • RoHS Compliant: Yes
