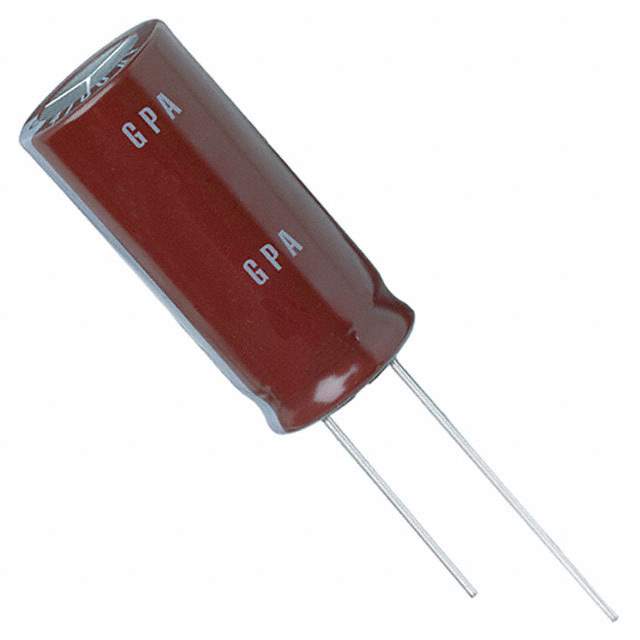

EGPA250ELL222MK30S Real Image
Same model may have multiple batches, images only for reference.

EGPA250ELL222MK30S

Part No EGPA250ELL222MK30S
Manufacturer United Chemi-Con
Catalog Aluminum Capacitors
Description CAP ALUM 2200UF 20% 25V RADIAL
Datasheet
EGPA250ELL222MK30S Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer United Chemi-Con
Series GPA
Packaging Bulk
Capacitance 2200μF
Tolerance ±20%
Voltage Rating 25V
ESR (Equivalent Series Resistance) 29 mOhm @ 100kHz
Lifetime @ Temp. 5000 Hrs @ 125°C
Operating Temperature Range -40°C ~ 125°C
Polarization Polar
Applications Automotive
Ripple Current - Low Frequency 1.92A @ 120Hz
Ripple Current - High Frequency 2.56A @ 100kHz
Lead Spacing 0.197" (5.00mm)
Dimension 0.492" Dia (12.50mm)
Height - Seated (Maximum) 1.240" (31.50mm)
Mounting Style Through Hole
Package Radial, Can
Win Source Part Number 766670-EGPA250ELL222MK30S
Popularity Medium
Supply and Demand Status Limited
Family Name GPA
Introduction Date March 16, 2005
Estimated EOL Date 2026
Ultra Librarian 3D Model Ultra Librarian EGPA250ELL222MK30S CAD Model

Description

The United Chemi-Con GPA series capacitor is a bulk through-hole mounting style capacitor with a capacitance of 2200μF and a voltage rating of 25V.

  • Series: GPA
  • Mounting Style: Through Hole
  • Capacitance: 2200μF
  • Voltage Rating: 25V
  • Tolerance: ±20%
  • Lead Spacing: 0.197" (5.00mm)
  • Polarization: Polarized
  • ESR (Equivalent Series Resistance): 29 mOhm @ 100kHz
  • Ripple Current - Low Frequency: 1.92A @ 120Hz
  • Ripple Current - High Frequency: 2.56A @ 100kHz
  • Impedance: -
  • Lifetime: 5000 Hrs @ 125°C
  • Operating Temperature: -40°C ~ 125°C
  • Applications: Automotive
