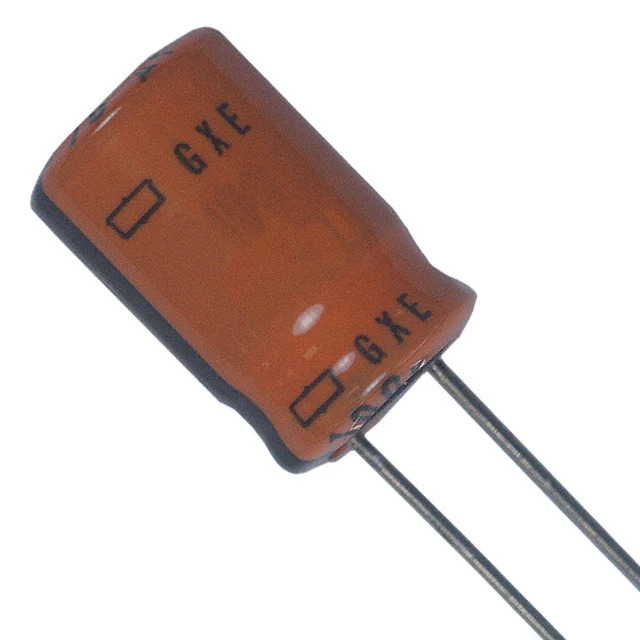

EGXE160ELL102MK20S United Chemi-Con
Same model may have multiple batches, images only for reference.

EGXE160ELL102MK20S

Part No EGXE160ELL102MK20S
Manufacturer United Chemi-Con
Catalog Aluminum Capacitors
Description CAP ALUM 1000UF 20% 16V RADIAL / 1000 µF 16 V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 125°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr United Chemi-Con
Series GXE
Package Bulk
Product Status Active
Capacitance 1000 µF
Tolerance ±20%
Voltage - Rated 16 V
ESR (Equivalent Series Resistance) -
Lifetime @ Temp. 5000 Hrs @ 125°C
Temperature Range - Operating -40°C ~ 125°C
Polarization Polar
Ratings AEC-Q200
Applications Automotive
Ripple Current @ Low Frequency 648 mA @ 120 Hz
Ripple Current @ High Frequency 1.08 A @ 100 kHz
Impedance 58 mOhms
Lead Spacing 0.197" (5.00mm)
Size / Dimension 0.492" Dia (12.50mm)
Height - Seated (Max) 0.866" (22.00mm)
Surface Mount Land Size -
Mounting Type Through Hole
Package / Case Radial, Can
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1357899-EGXE160ELL102MK20S
Ultra Librarian 3D Model Ultra Librarian EGXE160ELL102MK20S CAD Model

Description

The EGXE160ELL102MK20S is an aluminum electrolytic capacitor from United Chemi-Con. It is part of the GXE series and has a capacitance of 1000 μF with a tolerance of ±20%.

  • Capacitance: 1000 μF
  • Tolerance: ±20%
  • Voltage Rating: 16 V
  • Application: Automotive
  • Ripple Current: 648 mA @ 120 Hz and 1.08 A @ 100 kHz
  • Mounting Type: Through-Hole
  • Package: Radial, Can
  • Size: 0.492" Dia (12.50mm) and a height of 0.866" (22.00mm)
  • Lifetime: 5000 hours @ 125°C
  • AEC-Q200: Yes
  • REACH: Unaffected
  • ECCN: EAR99
  • Polarized: Yes
  • Impedance: 58 mOhms
