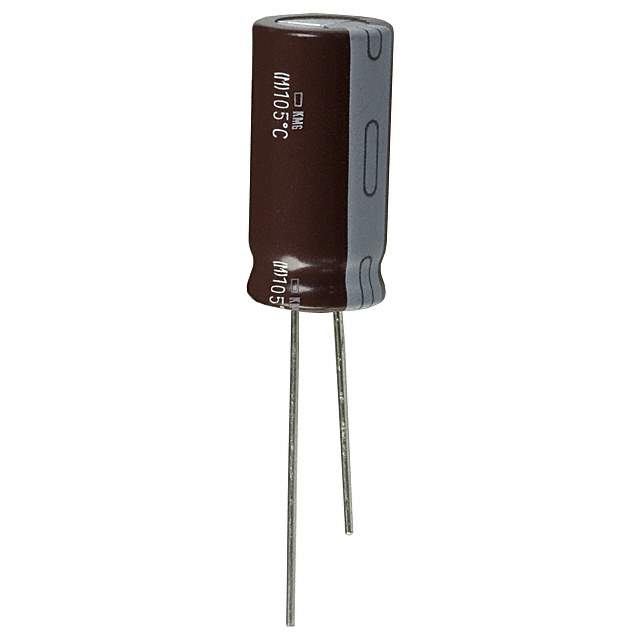

EKMG451ELL220ML25S Real Image
Same model may have multiple batches, images only for reference.

EKMG451ELL220ML25S

Part No EKMG451ELL220ML25S
Manufacturer United Chemi-Con
Catalog Aluminum Capacitors
Description CAP ALUM 22UF 20% 450V RADIAL / Cap Aluminum Lytic 22uF 450V 20% (16 X 25mm) Radial 7.5mm 115mA 2000h 105°C Bulk
Datasheet
EKMG451ELL220ML25S Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer United Chemi-Con
Series KMG
Packaging Bulk
Capacitance 22μF
Tolerance ±20%
Voltage Rating DC 450V
Lifetime @ Temp. 2000 Hrs @ 105°C
Operating Temperature Range -25°C ~ 105°C
Polarization Polar
Applications General
Ripple Current - Low Frequency 115mA @ 120Hz
Ripple Current - High Frequency 207mA @ 100kHz
Lead Spacing 0.295" (7.50mm)
Dimension 0.630" Dia (16.00mm)
Height - Seated (Maximum) 1.043" (26.50mm)
Mounting Style Through Hole
Package Radial, Can
Win Source Part Number 777929-EKMG451ELL220ML25S
Popularity Medium
Supply and Demand Status Limited
Family Name KMG
Introduction Date September 20, 2004
ECCN EAR99
Country of Origin China, Indonesia, Japan, Republic of Korea, Taiwan
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian EKMG451ELL220ML25S CAD Model

Description

The United Chemi-Con KMG series is a radial, can capacitor with a capacitance of 22μF and a voltage rating of 450V.

  • Ripple Current: 115mA @ 120Hz, 207mA @ 100kHz
  • Lead Spacing: 0.295" (7.50mm)
  • Dimension: 0.630" Dia (16.00mm)
  • Lifetime: 2000 Hrs @ 105°C
  • Applications: Power Supplies, DC-DC Converters, Industrial Equipment
