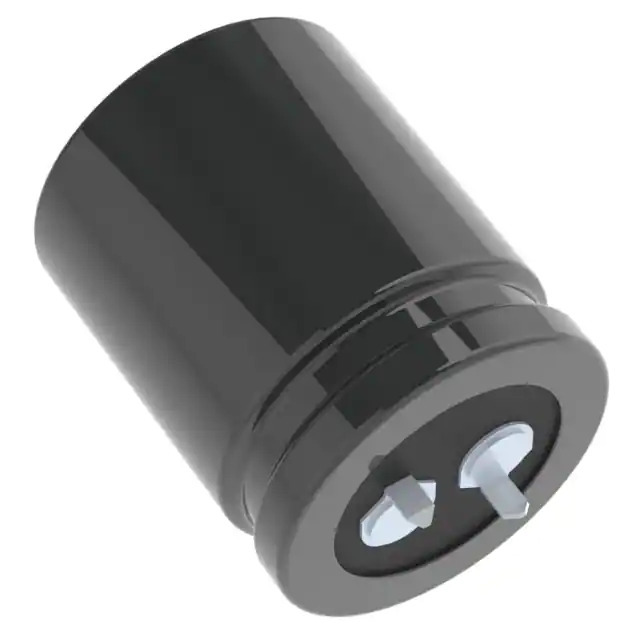

EKMH250VSN153MR35S United Chemi-Con
Same model may have multiple batches, images only for reference.

EKMH250VSN153MR35S

Part No EKMH250VSN153MR35S
Manufacturer United Chemi-Con
Catalog Aluminum Capacitors
Description CAP ALUM 15000UF 20% 25V SNAP / 15000 µF 25 V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 33mOhm @ 120Hz 2000 Hrs @ 105°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr United Chemi-Con
Series KMH
Package Bulk
Product Status Active
Capacitance 15000 µF
Tolerance ±20%
Voltage - Rated 25 V
ESR (Equivalent Series Resistance) 33mOhm @ 120Hz
Lifetime @ Temp. 2000 Hrs @ 105°C
Temperature Range - Operating -40°C ~ 105°C
Polarization Polar
Ratings -
Applications General Purpose
Ripple Current @ Low Frequency 3.13 A @ 120 Hz
Ripple Current @ High Frequency 3.3804 A @ 100 kHz
Lead Spacing 0.394" (10.00mm)
Size / Dimension 1.181" Dia (30.00mm)
Height - Seated (Max) 1.457" (37.00mm)
Surface Mount Land Size -
Mounting Type Through Hole
Package / Case Radial, Can - Snap-In
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0040
Win Source Part Number 1360691-EKMH250VSN153MR35S
Ultra Librarian 3D Model Ultra Librarian EKMH250VSN153MR35S CAD Model

Description

The KMH series from United Chemi-Con is a radial, can - snap-in aluminum electrolytic capacitor.

  • Series: KMH
  • Capacitance: 15000 µF
  • Voltage Rating: 25 V
  • Application: General Purpose
  • Operating Temperature: -40°C to 105°C
  • Lifetime: 2000 hours @ 105°C
  • ESR: 33mOhm @ 120Hz
  • Ripple Current (Low Frequency): 3.13 A
  • Ripple Current (High Frequency): 3.3804 A
  • Size: 1.181" in diameter and 1.457" in height when seated
  • Mounting Type: Through Hole
  • Lead Spacing: 10.00mm
  • Product Status: Active
