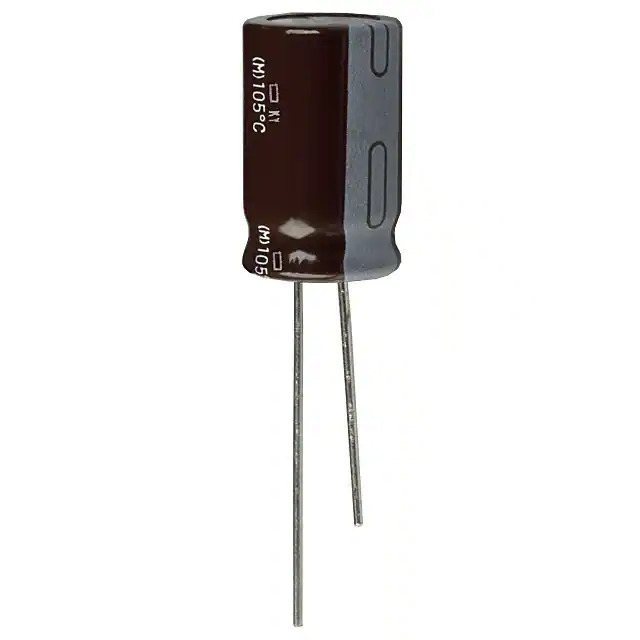

Same model may have multiple batches, images only for reference.

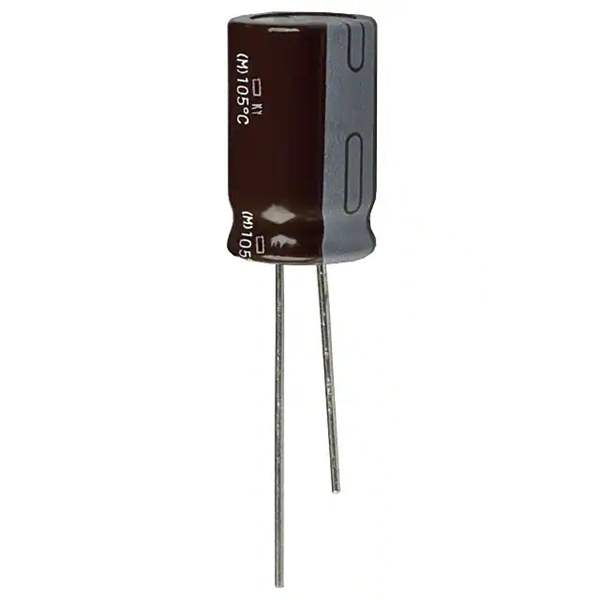

EKY-100ELL222MK20S United Chemi-Con
Same model may have multiple batches, images only for reference.

EKY-100ELL222MK20S

Part No EKY-100ELL222MK20S
Manufacturer United Chemi-Con
Catalog Aluminum Capacitors
Description CAP ALUM 2200UF 20% 10V RADIAL / 2200 µF 10 V Aluminum Electrolytic Capacitors Radial, Can 8000 Hrs @ 105°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr United Chemi-Con
Series KY
Package Bulk
Product Status Active
Capacitance 2200 µF
Tolerance ±20%
Voltage - Rated 10 V
ESR (Equivalent Series Resistance) -
Lifetime @ Temp. 8000 Hrs @ 105°C
Temperature Range - Operating -40°C ~ 105°C
Polarization Polar
Ratings -
Applications General Purpose
Ripple Current @ Low Frequency 1.425 A @ 120 Hz
Ripple Current @ High Frequency 1.9 A @ 100 kHz
Impedance 35 mOhms
Lead Spacing 0.197" (5.00mm)
Size / Dimension 0.492" Dia (12.50mm)
Height - Seated (Max) 0.787" (20.00mm)
Surface Mount Land Size -
Mounting Type Through Hole
Package / Case Radial, Can
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1357802-EKY-100ELL222MK20S
Ultra Librarian 3D Model Ultra Librarian EKY-100ELL222MK20S CAD Model

Description

The 1357802-EKY-100ELL222MK20S is an aluminum electrolytic capacitor manufactured by United Chemi-Con.

  • Series: KY
  • Mounting Type: Through-Hole
  • Capacitance: 2200 µF
  • Voltage Rating: 10 V
  • Tolerance: ±20%
  • ESR: Not specified
  • Lifetime: 8000 hours @ 105°C
  • Application: General Purpose
  • Ripple Current (120 Hz): 1.425 A
  • Ripple Current (100 kHz): 1.9 A
  • Lead Spacing: 0.197"
  • Diameter: 0.492"
  • Seated Height: 0.787"
  • REACH: Unaffected
  • ECCN: EAR99
  • Status: Active
