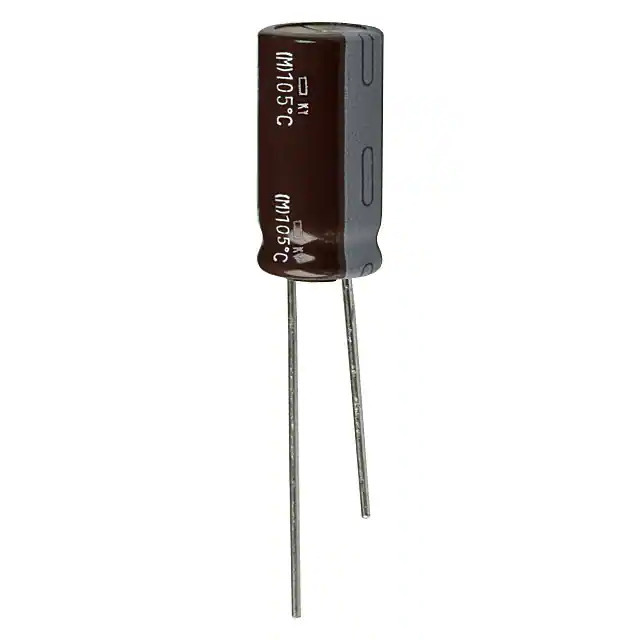

Same model may have multiple batches, images only for reference.

EKY-100ETD222MK20S

Name: EKY-100ETD222MK20S
Brand: United Chemi-Con
SKU: 1358196
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	EKY-100ETD222MK20S
Manufacturer	United Chemi-Con
Catalog	Aluminum Capacitors
Description	CAP ALUM 2200UF 20% 10V RADIAL / 2200 µF 10 V Aluminum Electrolytic Capacitors Radial, Can 8000 Hrs @ 105°C
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors - Aluminum Electrolytic Capacitors
Mfr	United Chemi-Con
Series	KY
Package	Tape & Box (TB)
Product Status	Active
Capacitance	2200 µF
Tolerance	±20%
Voltage - Rated	10 V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	8000 Hrs @ 105°C
Temperature Range - Operating	-40°C ~ 105°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	1.425 A @ 120 Hz
Ripple Current @ High Frequency	1.9 A @ 100 kHz
Impedance	35 mOhms
Lead Spacing	0.197" (5.00mm)
Size / Dimension	0.492" Dia (12.50mm)
Height - Seated (Max)	0.846" (21.50mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0020
Win Source Part Number	1358196-EKY-100ETD222MK20S
Ultra Librarian 3D Model	Ultra Librarian EKY-100ETD222MK20S CAD Model

Alternative Products

Description

The 1358196-EKY-100ETD222MK20S is an aluminum electrolytic capacitor from United Chemi-Con's KY series.

Capacitance: 2200 μF
Tolerance: ±20%
Operating Temperature: -40°C ~ 105°C
Applications: General Purpose
Voltage - Rated: 10 V
Ripple Current @ Low Frequency: 1.425 A @ 120 Hz
Ripple Current @ High Frequency: 1.9 A @ 100 kHz
Mounting Type: Through Hole
Package / Case: Radial, Can
Lead Spacing: 0.197 inches (5.00 mm)
Size / Dimension: 0.492 inches (12.50 mm)
Height - Seated (Max): 0.846 inches (21.50 mm)
Lifetime @ Temp.: 8000 Hrs @ 105°C
REACH Status: REACH Unaffected
ECCN: EAR99
Series: KY
