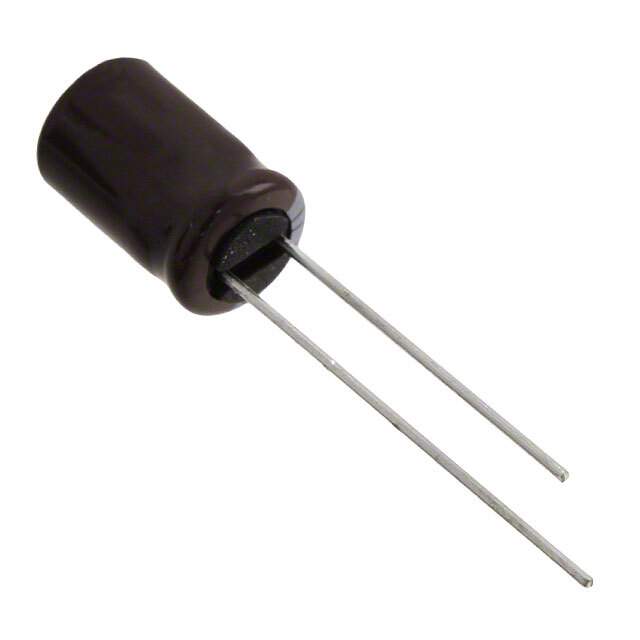

EKZE160ELL681MH20D Real Image
Same model may have multiple batches, images only for reference.

EKZE160ELL681MH20D

Part No EKZE160ELL681MH20D
Manufacturer United Chemi-Con
Catalog Aluminum Capacitors
Description CAP ALUM 680UF 20% 16V RADIAL / Cap Aluminum Lytic 680uF 16V 20% (8 X 20mm) Radial 3.5mm 1250mA 3000h 105°C Bulk
Datasheet
EKZE160ELL681MH20D Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer United Chemi-Con
Series KZE
Packaging Bulk
Capacitance 680μF
Tolerance ±20%
Voltage Rating DC 16V
Lifetime @ Temp. 3000 Hrs @ 105°C
Operating Temperature Range -40°C ~ 105°C
Polarization Polar
Applications General
Ripple Current - Low Frequency 750mA @ 120Hz
Ripple Current - High Frequency 1.25A @ 100kHz
Impedance 41 mOhm
Lead Spacing 0.138" (3.50mm)
Dimension 0.315" Dia (8.00mm)
Height - Seated (Maximum) 0.787" (20.00mm)
Mounting Style Through Hole
Package Radial, Can
Win Source Part Number 777935-EKZE160ELL681MH20D
Popularity Medium
Supply and Demand Status Limited
Family Name KZE
Introduction Date September 07, 2008
ECCN EAR99
Country of Origin China, Indonesia, Japan, Republic of Korea, Taiwan
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian EKZE160ELL681MH20D CAD Model

Description

The United Chemi-Con KZE series aluminum electrolytic capacitor is a high-quality component for use in general-purpose electronics.

  • Capacitance: 680 μF
  • Voltage Rating: 16 V
  • Impedance: 41 mOhms
  • Tolerance: ±20%
  • Lifetime: 3000 hours @ 105°C
  • Mounting Type: Through Hole
  • Package: Radial, Can-Style
  • Diameter: 0.315 inches (8.00mm)
  • Height: 0.787 inches (20.00mm)
  • Packaging: Bulk
