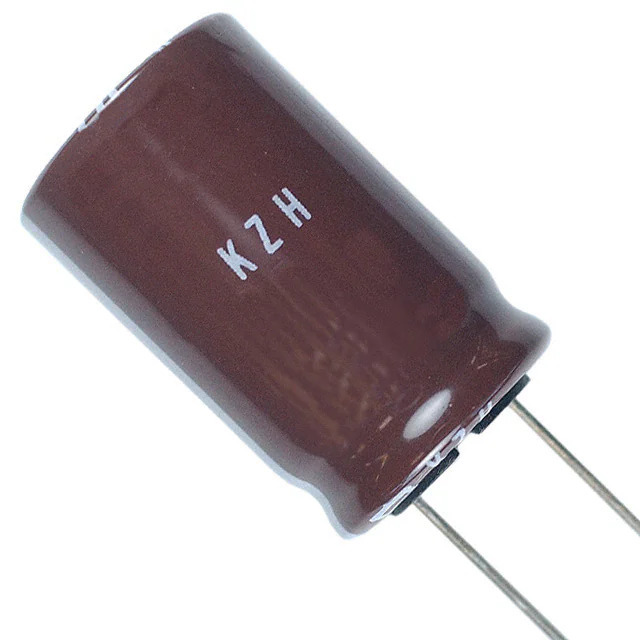

EKZH160ELL102MH20D United Chemi-Con
Same model may have multiple batches, images only for reference.

EKZH160ELL102MH20D

Part No EKZH160ELL102MH20D
Manufacturer United Chemi-Con
Catalog Aluminum Capacitors
Description CAP ALUM 1000UF 20% 16V RADIAL / 1000 µF 16 V Aluminum Electrolytic Capacitors Radial, Can 6000 Hrs @ 105°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr United Chemi-Con
Series KZH
Package Bulk
Product Status Active
Capacitance 1000 µF
Tolerance ±20%
Voltage - Rated 16 V
ESR (Equivalent Series Resistance) -
Lifetime @ Temp. 6000 Hrs @ 105°C
Temperature Range - Operating -40°C ~ 105°C
Polarization Polar
Ratings -
Applications General Purpose
Ripple Current @ Low Frequency 846 mA @ 120 Hz
Ripple Current @ High Frequency 1.41 A @ 100 kHz
Impedance 33 mOhms
Lead Spacing 0.138" (3.50mm)
Size / Dimension 0.315" Dia (8.00mm)
Height - Seated (Max) 0.846" (21.50mm)
Surface Mount Land Size -
Mounting Type Through Hole
Package / Case Radial, Can
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1357748-EKZH160ELL102MH20D
Ultra Librarian 3D Model Ultra Librarian EKZH160ELL102MH20D CAD Model

Description

The EKZH160ELL102MH20D is an aluminum electrolytic capacitor manufactured by United Chemi-Con.

  • Series: KZH
  • Manufacturer: United Chemi-Con
  • Capacitance: 1000 μF
  • Voltage - Rated: 16 V
  • Application: General Purpose
  • Tolerance: ±20%
  • Ripple Current @ Low Frequency: 846 mA @ 120 Hz
  • Ripple Current @ High Frequency: 1.41 A @ 100 kHz
  • Operating Temperature: -40°C ~ 105°C
  • Lifetime @ Temp.: 6000 Hrs @ 105°C
  • Mounting Type: Through Hole
  • Package / Case: Radial, Can
  • Lead Spacing: 0.138" (3.50mm)
  • Size / Dimension: 0.315" Dia (8.00mm)
  • REACH Status: Unaffected
  • ECCN: EAR99
  • Product Status: Active
