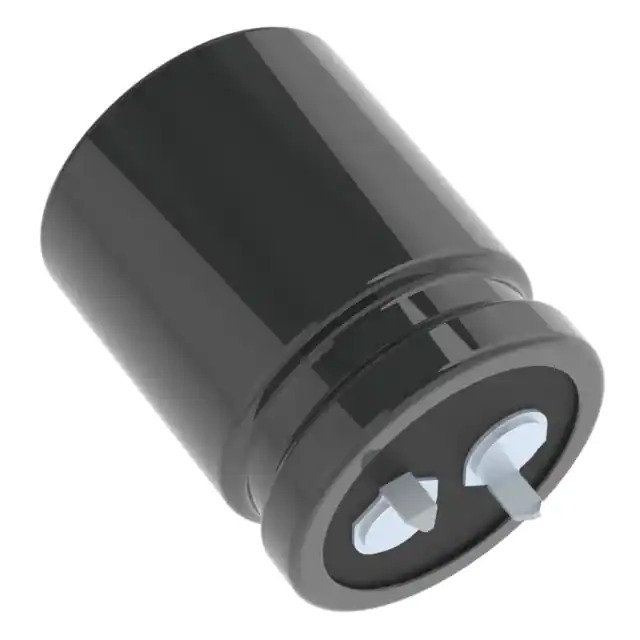

ELXM451VSN820MQ30S United Chemi-Con
Same model may have multiple batches, images only for reference.

ELXM451VSN820MQ30S

Part No ELXM451VSN820MQ30S
Manufacturer United Chemi-Con
Catalog Aluminum Capacitors
Description CAP ALUM 82UF 20% 450V SNAP / 82 µF 450 V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 7000 Hrs @ 105°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr United Chemi-Con
Series LXM
Package Bulk
Product Status Active
Capacitance 82 µF
Tolerance ±20%
Voltage - Rated 450 V
ESR (Equivalent Series Resistance) -
Lifetime @ Temp. 7000 Hrs @ 105°C
Temperature Range - Operating -25°C ~ 105°C
Polarization Polar
Ratings -
Applications General Purpose
Ripple Current @ Low Frequency 650 mA @ 120 Hz
Ripple Current @ High Frequency 929.5 mA @ 50 kHz
Lead Spacing 0.394" (10.00mm)
Size / Dimension 1.000" Dia (25.40mm)
Height - Seated (Max) 1.260" (32.00mm)
Surface Mount Land Size -
Mounting Type Through Hole
Package / Case Radial, Can - Snap-In
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0040
Win Source Part Number 1360797-ELXM451VSN820MQ30S
Ultra Librarian 3D Model Ultra Librarian ELXM451VSN820MQ30S CAD Model

Description

The United Chemi-Con LXM series is a bulk packaged aluminum electrolytic capacitor with a snap-in can package.

  • Series: LXM
  • Capacitance: 82 µF
  • Voltage Rating: 450 V
  • Application: General-Purpose
  • Temperature Range: -25°C to 105°C
  • Lifetime: 7,000 hours @ 105°C
  • Package: Radial, Can
  • Mounting: Through-Hole
  • Ripple Current (Low Frequency): 650 mA @ 120 Hz
  • Ripple Current (High Frequency): 929.5 mA @ 50 kHz
  • Lead Spacing: 10.00mm
  • Diameter: 25.40mm
  • REACH: Unaffected
  • ECCN: EAR99
