Same model may have multiple batches, images only for reference.

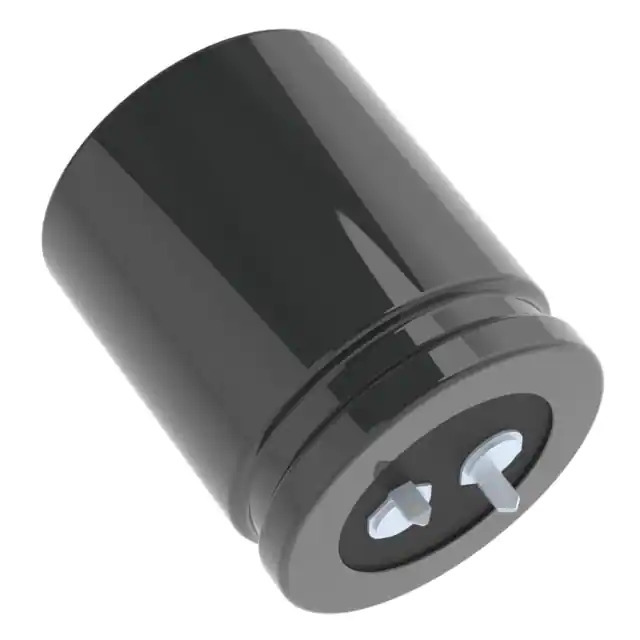

ELXS451VSN471MA40S United Chemi-Con
Same model may have multiple batches, images only for reference.

ELXS451VSN471MA40S

Part No ELXS451VSN471MA40S
Manufacturer United Chemi-Con
Catalog Aluminum Capacitors
Description CAP ALUM 470UF 20% 450V SNAP / 470 µF 450 V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 5000 Hrs @ 105°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr United Chemi-Con
Series LXS
Package Bulk
Product Status Active
Capacitance 470 µF
Tolerance ±20%
Voltage - Rated 450 V
ESR (Equivalent Series Resistance) -
Lifetime @ Temp. 5000 Hrs @ 105°C
Temperature Range - Operating -25°C ~ 105°C
Polarization Polar
Ratings -
Applications General Purpose
Ripple Current @ Low Frequency 1.95 A @ 120 Hz
Ripple Current @ High Frequency 2.7885 A @ 50 kHz
Lead Spacing 0.394" (10.00mm)
Size / Dimension 1.378" Dia (35.00mm)
Height - Seated (Max) 1.654" (42.00mm)
Surface Mount Land Size -
Mounting Type Through Hole
Package / Case Radial, Can - Snap-In
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0040
Win Source Part Number 1360748-ELXS451VSN471MA40S
Ultra Librarian 3D Model Ultra Librarian ELXS451VSN471MA40S CAD Model

Description

The 1360748-ELXS451VSN471MA40S is a high-capacity aluminum electrolytic capacitor manufactured by United Chemi-Con. It belongs to the LXS series and is designed for general-purpose applications.

  • Capacitance: 470 μF
  • Voltage Rating: 450 V
  • Applications: General Purpose
  • Package: Radial, Can - Snap-In
  • Operating Temperature: -25°C to 105°C
  • Tolerance: ±20%
  • Ripple Current (Low Frequency): 1.95 A @ 120 Hz
  • Ripple Current (High Frequency): 2.7885 A @ 50 kHz
  • Lifetime: 5000 hours @ 105°C
  • Polarization: Polarized
  • Size: 1.378" diameter
  • Height: 1.654"
  • Status: Active
  • REACH: Meets Requirements
  • ECCN: EAR99
