Same model may have multiple batches, images only for reference.

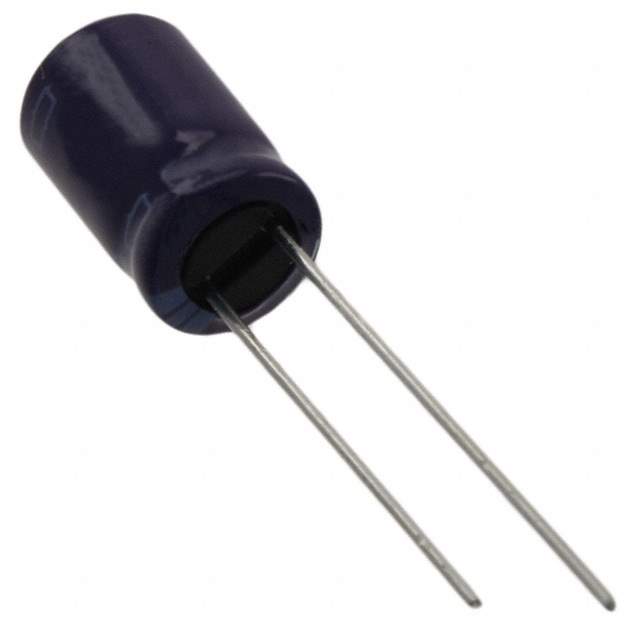

ELXZ160ELL471MH15D Real Image
Same model may have multiple batches, images only for reference.

ELXZ160ELL471MH15D

Part No ELXZ160ELL471MH15D
Manufacturer United Chemi-Con
Catalog Aluminum Capacitors
Description CAP ALUM 470UF 20% 16V RADIAL
Datasheet
ELXZ160ELL471MH15D Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer United Chemi-Con
Packaging Bulk
Status Active
Capacitance 470μF
Tolerance ±20%
Voltage Rating 16V
Lifetime @ Temp. 3000 Hrs @ 105°C
Temperature Range - Operating -55°C to 105°C
Polarization Polar
Applications Automotive
Ripple Current - Low Frequency 365mA @ 120Hz
Ripple Current - High Frequency 730mA @ 100kHz
Impedance 90 mOhm
Lead Spacing 0.138" (3.50mm)
Height - Seated (Max) 0.591" (15.00mm)
Mounting Through Hole
Dimension Radial, Can
Win Source Part Number 1050532-ELXZ160ELL471MH15D
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian ELXZ160ELL471MH15D CAD Model

Description

The United Chemi-Con ELXZ160ELL471MH15D is a bulk packaged, polarized capacitor with a capacitance of 470μF and a voltage rating of 16V.

  • Capacitance: 470μF
  • Voltage Rating: 16V
  • Height: 0.591" (15.00mm)
  • Lead Spacing: 0.138" (3.50mm)
  • Mounting Type: Through-Hole
  • Application: Automotive
  • Impedance: 90 mOhm
  • Lifetime: 3000 Hrs @ 105°C
  • Tolerance: ±20%
  • Ripple Current: 365mA @ 120Hz (Low Frequency) and 730mA @ 100kHz (High Frequency)
  • Packaging: Bulk
