Same model may have multiple batches, images only for reference.

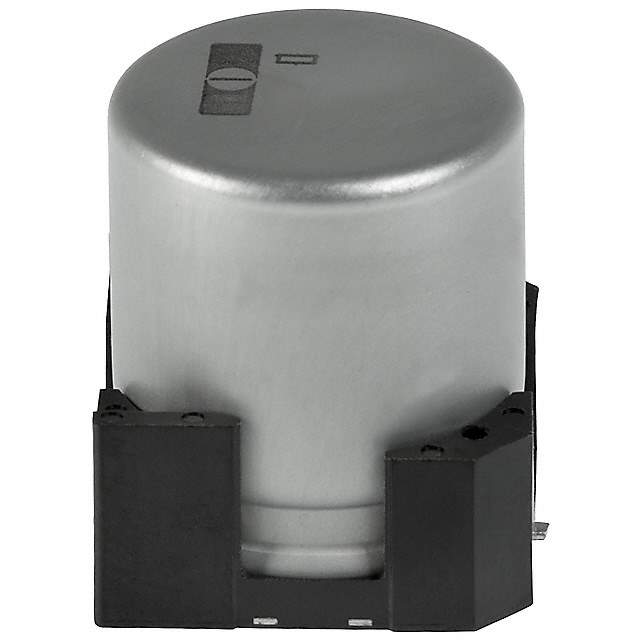

EMVY160GDA472MMN0S Real Image
Same model may have multiple batches, images only for reference.

EMVY160GDA472MMN0S

Part No EMVY160GDA472MMN0S
Manufacturer United Chemi-Con
Catalog Aluminum Capacitors
Description CAP ALUM 4700UF 20% 16V SMD / Cap Aluminum Lytic 4700uF 16V 20% (18 X 21.5mm) SMD 1750mA 5000h 105°C Automotive T/R
Datasheet
EMVY160GDA472MMN0S Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer United Chemi-Con
Series Alchip- MVY
Packaging Reel package
Capacitance 4700μF
Tolerance ±20%
Voltage Rating DC 16V
Lifetime @ Temp. 5000 Hrs @ 105°C
Operating Temperature Range -55°C ~ 105°C
Polarization Polar
Applications General
Ripple Current - Low Frequency 1.4875A @ 120Hz
Ripple Current - High Frequency 1.75A @ 100kHz
Impedance 38 mOhm
Dimension 0.709" Dia (18.00mm)
Height - Seated (Maximum) 0.846" (21.50mm)
Surface Mount Land Size 0.748" L x 0.748" W (19.00mm x 19.00mm)
Mounting SMD
Package Radial, Can - SMD
Win Source Part Number 773778-EMVY160GDA472MMN0S
Popularity Medium
Supply and Demand Status Limited
Family Name MV
Introduction Date September 07, 2008
ECCN EAR99
Country of Origin China, Indonesia, Japan, Republic of Korea
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian EMVY160GDA472MMN0S CAD Model

Description

The United Chemi-Con Alchip-MVY series capacitor is an ideal choice for general electronic applications.

  • Capacitance: 4700μF
  • Tolerance: ±20%
  • Impedance: 38 mOhm
  • Operating Temperature Range: -55°C to 105°C
  • Lifetime: 5000 hours @ 105°C
  • Voltage Rating DC: 16V
  • Ripple Current: 1.4875A @ 120Hz, 1.75A @ 100kHz
  • Packaging: Radial, can-SMD
  • Surface Mount Land Size: 0.748" L x 0.748" W (19.00mm x 19.00mm)
  • Diameter: 0.709" (18.00mm)
  • Height: 0.846" (21.50mm)
