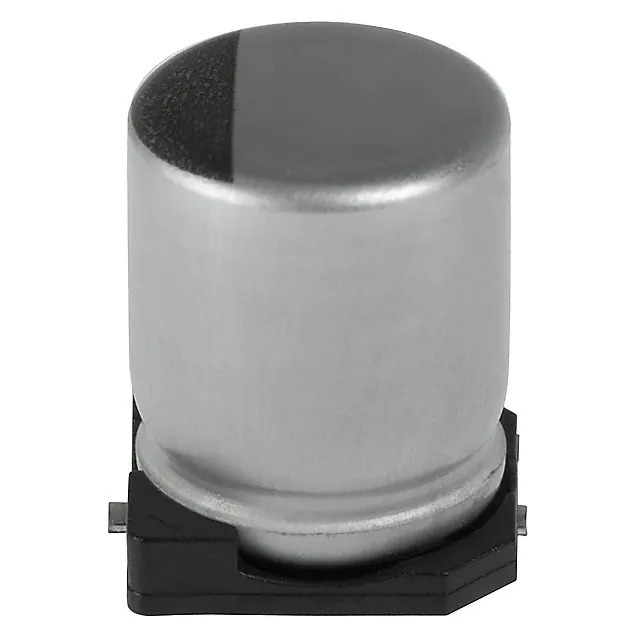

Same model may have multiple batches, images only for reference.
EMZA250ARA221MHA0G United Chemi-Con
Same model may have multiple batches, images only for reference.

EMZA250ARA221MHA0G

Part No EMZA250ARA221MHA0G
Manufacturer United Chemi-Con
Catalog Aluminum Capacitors
Description CAP ALUM 220UF 20% 25V SMD / 220 µF 25 V Aluminum Electrolytic Capacitors Radial, Can - SMD 2000 Hrs @ 105°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr United Chemi-Con
Series Alchip™- MZA
Package Tape & Reel
Product Status Active
Capacitance 220 µF
Tolerance ±20%
Voltage - Rated 25 V
ESR (Equivalent Series Resistance) -
Lifetime @ Temp. 2000 Hrs @ 105°C
Temperature Range - Operating -55°C ~ 105°C
Polarization Polar
Ratings AEC-Q200
Applications Automotive
Ripple Current @ Low Frequency 300 mA @ 120 Hz
Ripple Current @ High Frequency 600 mA @ 100 kHz
Impedance 160 mOhms
Lead Spacing -
Size / Dimension 0.315" Dia (8.00mm)
Height - Seated (Max) 0.413" (10.50mm)
Surface Mount Land Size 0.327" L x 0.327" W (8.30mm x 8.30mm)
Mounting Type Surface Mount
Package / Case Radial, Can - SMD
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1360266-EMZA250ARA221MHA0G
Ultra Librarian 3D Model Ultra Librarian EMZA250ARA221MHA0G CAD Model

Description

The EMZA250ARA221MHA0G is a surface mount aluminum electrolytic capacitor from United Chemi-Con's Alchip™- MZA series. The United Chemi-Con EMZA250ARA221MHA0G is suitable for automotive applications.

  • Series: Alchip™- MZA
  • Capacitance: 220µF
  • Voltage - Rated: 25V
  • Tolerance: ±20%
  • Ripple Current @ Low Frequency: 300mA @ 120Hz
  • Ripple Current @ High Frequency: 600mA @ 100kHz
  • Size / Dimension: 8.00mm Dia
  • Height - Seated (Max): 10.50mm
  • Mounting Type: Surface Mount
  • Package / Case: Radial, Can - SMD
  • Lifetime @ Temp.: 2,000 Hours @ 105°C
  • Application: Automotive
  • REACH: Unaffected
  • ECCN: EAR99
