Same model may have multiple batches, images only for reference.

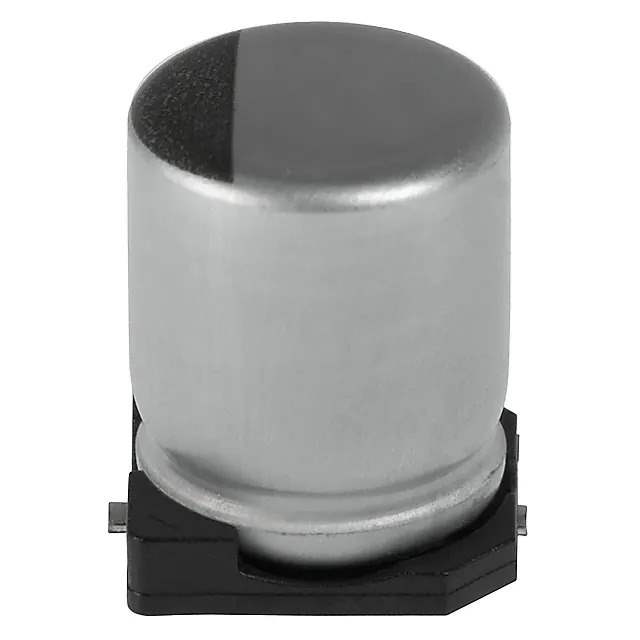

EMZA500ARA101MHA0G Real Image
Same model may have multiple batches, images only for reference.

EMZA500ARA101MHA0G

Part No EMZA500ARA101MHA0G
Manufacturer United Chemi-Con
Catalog Aluminum Capacitors
Description CAP ALUM 100UF 20% 50V SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr United Chemi-Con
Series Alchip™- MZA
Package Tape & Reel
Product Status Active
Capacitance 100 µF
Tolerance ±20%
Voltage - Rated 50 V
Lifetime @ Temp. 2000 Hrs @ 105°C
Temperature Range - Operating -55°C ~ 105°C
Polarization Polar
Ratings AEC-Q200
Applications Automotive
Ripple Current @ Low Frequency 140 mA @ 120 Hz
Ripple Current @ High Frequency 350 mA @ 100 kHz
Impedance 340 mOhms
Size / Dimension 0.315" Dia (8.00mm)
Height - Seated (Max) 0.413" (10.50mm)
Surface Mount Land Size 0.327" L x 0.327" W (8.30mm x 8.30mm)
Mounting Type Surface Mount
Package / Case Radial, Can - SMD
Standard Package 500 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1120513-EMZA500ARA101MHA0G
Ultra Librarian 3D Model Ultra Librarian EMZA500ARA101MHA0G CAD Model

Description

The Alchip™- MZA series offers high-quality aluminum electrolytic capacitors for automotive applications. The 1120513-EMZA500ARA101MHA0G is a part of this series and has a capacitance of 100µF with a voltage rating of 50V.

  • Capacitance: 100µF
  • Voltage Rating: 50V
  • Operating Temperature: -55°C to 105°C
  • Tolerance: ±20%
  • Standard Package: 500 pcs
  • Mounting: Surface mountable
  • Package: Radial, can - SMD package
  • Status: Active product from United Chemi-Con
  • Standard: Meets the AEC-Q200 standard
  • Ripple Current (Low Frequency): 140mA @ 120Hz
  • Ripple Current (High Frequency): 350mA @ 100kHz
