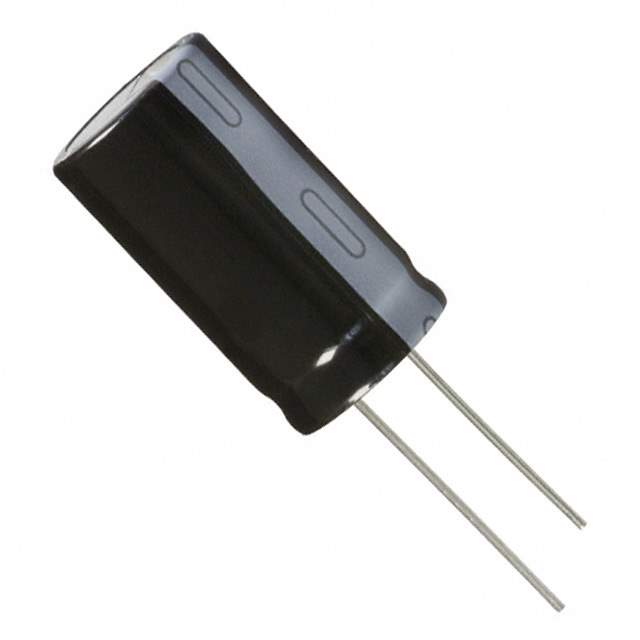

ESMG401ELL101MN35S Real Image
Same model may have multiple batches, images only for reference.

ESMG401ELL101MN35S

Part No ESMG401ELL101MN35S
Manufacturer United Chemi-Con
Catalog Aluminum Capacitors
Description CAP ALUM 100UF 20% 400V RADIAL / 100 µF 400 V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr United Chemi-Con
Series SMG
Package Bulk
Product Status Obsolete
Capacitance 100 µF
Tolerance ±20%
Voltage - Rated 400 V
Lifetime @ Temp. 2000 Hrs @ 85°C
Temperature Range - Operating -40°C ~ 85°C
Polarization Polar
Applications General Purpose
Ripple Current @ Low Frequency 520 mA @ 120 Hz
Ripple Current @ High Frequency 743.6 mA @ 100 kHz
Lead Spacing 0.394" (10.00mm)
Size / Dimension 0.787" Dia (20.00mm)
Height - Seated (Max) 1.437" (36.50mm)
Mounting Type Through Hole
Package / Case Radial, Can
Standard Package 250
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0040
Win Source Part Number 1340346-ESMG401ELL101MN35S
Ultra Librarian 3D Model Ultra Librarian ESMG401ELL101MN35S CAD Model

Description

The SMG series aluminum electrolytic capacitor is a high-performance component that is ideal for general-purpose applications. Bold the product name (e.g., BAV99S,135 → SMG series) and manufacturer (e.g., Nexperia USA Inc. → United Chemi-Con).

  • Capacitance: 100 µF
  • Voltage Rating: 400 V
  • Operating Temperature: -40°C to 85°C
  • Lead Spacing: 0.394" (10.00mm)
  • Lifetime: 2000 hours @ 85°C
  • Package: Radial, Can Type
  • Mounting Type: Through-Hole
  • Diameter: 0.787" (20.00mm)
  • Packaging: Bulk
  • Status: Obsolete
